Hyundai Santa Fe (TM): Vehicle Information, Consumer Information and Reporting Safety Defects / Engine Compartment

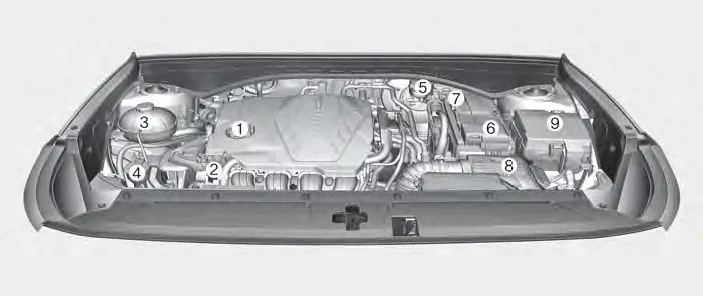

Smartstream G2.5 GDI

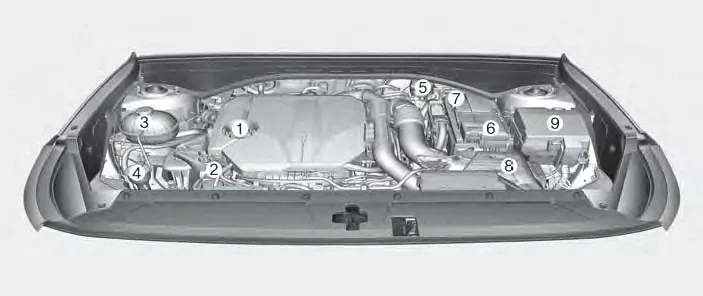

Smartstream G2.5 T-GDI
1. Engine oil filler cap
2. Engine oil dipstick
3. Engine coolant reservoir
4. Windshield washer fluid reservoir
5. Brake fluid reservoir
6. Battery terminal [+]
7. Battery terminal [-]
8. Air cleaner
9. Fuse box
1. Instrument cluster 2. Driver’s front air bag 3. Engine Start/Stop button 4. Infotainment system 5. Hazard warning lamp switch 6. Climate control system 7.
Dimensions Engine Bulb wattage
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Surround View Monitor (SVM) Unit. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the carash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the crash pad center panel.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Surround View Monitor (SVM) Camera. Repair procedures
Removal • In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials.
