Hyundai Santa Fe (TM): Emergency Call System / Emergency Call (eCall) Button. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Emergency Call System / Emergency Call (eCall) Button. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the overhead console cover (A).
3.

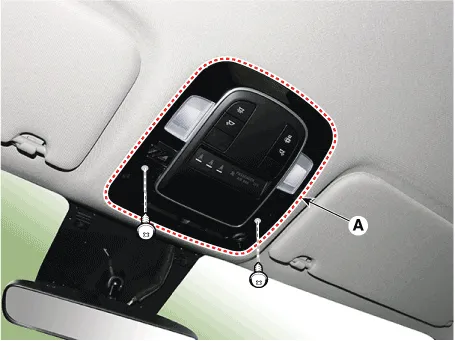

Remove the overhead console (A) after loosening mounting screws.
4.
Remove the overhead console after disconnecting the connector (A).
Installation
1.
Install the overhead console after connecting the connector.
2.
Connect the negative (-) battery terminal.

    Circuit diagram eCall switch (1B) eCall switch (2B)

    Components RADIO+GNSS+eCall RADIO+GNSS+DAB+eCall
