Hyundai Santa Fe (TM): Drive Belt System / Drive Belt Tensioner. Repair procedures
| Removal and Installation |
|
| 1. |
Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
|
| 2. |

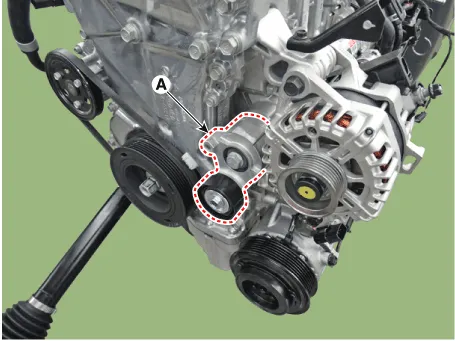

Remove the drive belt auto tensioner (A).
|
| 3. |
Install in the reverse order of removal.
|
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Removal and Installation • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
