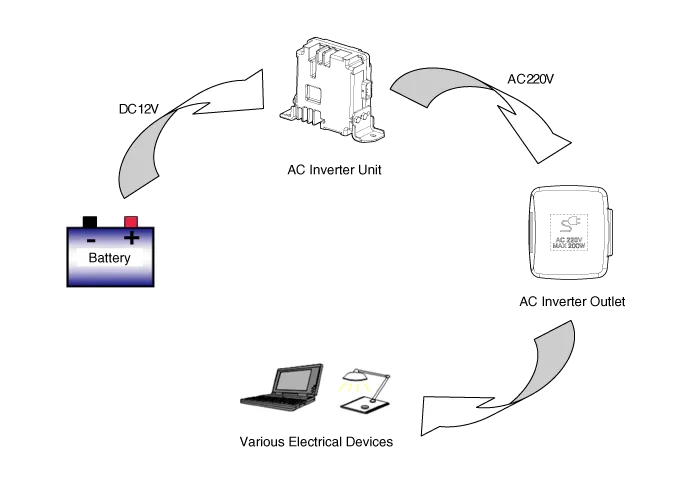

An inverter is a device that transforms the DC voltage from the battery into
an AC voltage (220 V). The inverter can power various electrical devices that
consume 200 W or less, including mobile phone or notebook rechargers, audio
systems, and TVs.
Item
|
Condition
|
LED Status
|
Undervoltage protection
|
Shuts down for safety at voltages lower than 11.3 V ± 0.3 V.
|
LED flickering
|
Resumes operation at 12.2 V ± 0.3 V.
|
LED lighting
|
Overvoltage protection
|
Shuts down for safety at voltages higher than 15.5 V ± 0.3 V.
|
LED flickering
|
Resumes operation at 15.5 V ± 0.3 V.
|
LED lighting
|
Overheat protection
|
Shuts down for safety if temperatures exceed 105°C ± 10°C.
|
LED flickering
|
Resumes operation at 95°C ± 10°C.
|
LED lighting
|
Overcurrent protection
|
Turns OFF when overcurrent above a set point is detected.
|
LED lighting
|
The inverter stops for 20 seconds before its restarts.
|
LED flickering
(20 seconds)
|
Turns OFF when overcurrent is detected 3 times (turn the AC inverter switch
ON again to turn on the inverter).
|
|
short circuit protection
|
The inverter shuts down for safety if there is a short circuit between the
AC1 and AC 2 outputs during operation.
|
LED OFF
|
undervoltage/overvoltage shutdown protection
|
Shuts down at voltages lower than 10.7 V ± 0.3 V.
|
LED OFF
|
Shuts down at voltages lower than 16.5 V ± 0.3 V.
|
LED OFF
|
