Hyundai Santa Fe (TM): Cylinder Head Assembly / CVVT & Camshaft. Description and operation

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Mechanical System / Cylinder Head Assembly / CVVT & Camshaft. Description and operation

Description
Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load.
By controlling CVVT, the valve over-lap or under-lap occurs, which makes better fuel economy and reduces exhaust gases (NOx, HC) and improves engine performance through reduction of pumping loss, internal EGR effect, improvement of combustion stability, improvement of volumetric efficiency, and increase of expansion work.

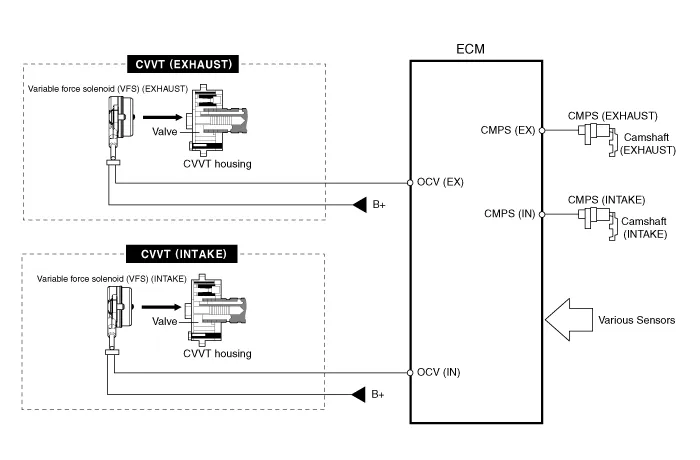

This system consist of
–
the CVVT Oil Control Valve (OCV) which supplies the engine oil to the cam phaser or runs out the engine oil from the cam phaser in accordance with the ECM PWM (Pulse With Modulation) control signal,
–
and the Cam Phaser which varies the cam phase by using the hydraulic force of the engine oil.
The engine oil getting out of the CVVT oil control valve varies the cam phase in the direction (Intake Advance/Exhaust Retard) or opposite direction (Intake Retard/Exhaust Advance) of the engine rotation by rotating the rotor connected with the camshaft inside the cam phaser.

Operation Principle

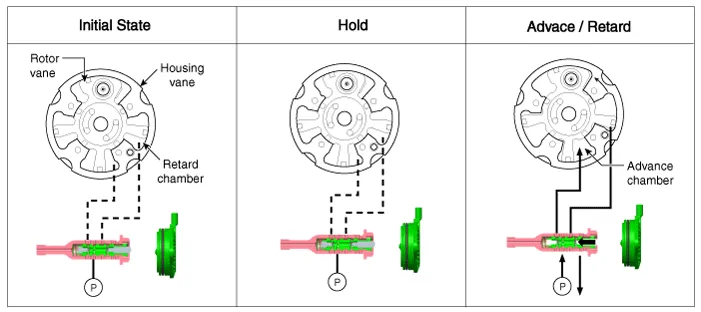

The CVVT has the mechanism rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.

•
The variable force solenoid (VFS) changes its force depending on the PWM duty to control the stroke of the OCV.
•
It also controls the lock, unlock, advanced, retarded, and holding functions.

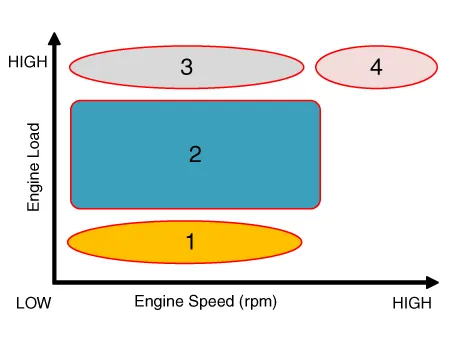

[CVVT System Mode]

(1) Low Speed / Low Load
 (2) Part Load


(3) Low Speed / High Load
 (4) High Speed / High Load



Driving
Condition
Exhaust Valve
Intake Valve
Valve
Timing
Effect
Valve
Timing
Effect

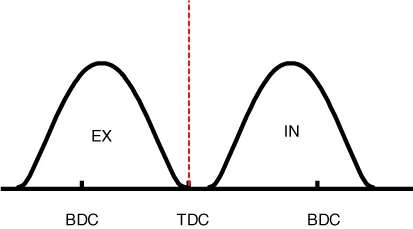

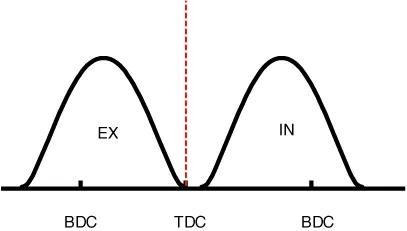

(1) Low Speed
/Low Load
 Completely
Advance
 * Valve Under-lap
* Improvement of combustion stability
 Completely
Retard
 * Valve Under-lap
* Improvement of combustion stability

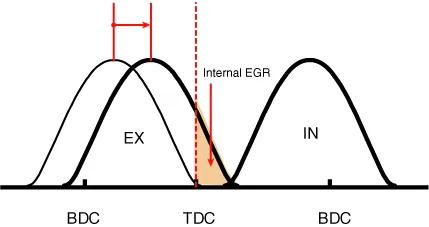

(2) Part Load
 Retard
 * Increase of expansion work
* Reduction of pumping loss
* Reduction of HC
 Retard
 * Reduction of pumping loss
(3) Low Speed
/High Load
 Retard
 * Increase of expansion work
 Advance
 * Prevention of intake back flow (Improvement of volumetric efficiency)

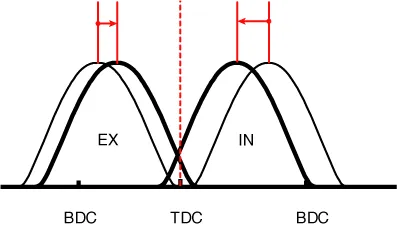

(4) High Speed
/High Load
 Advance
 * Reduction of pumping loss
 Retard
 * Improvement of volumetric efficiency

    Removal 1. Disconnect the battery negative terminal. 2. Remove the engine cover.    • Remove the engine cover on room temperature.

    Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
