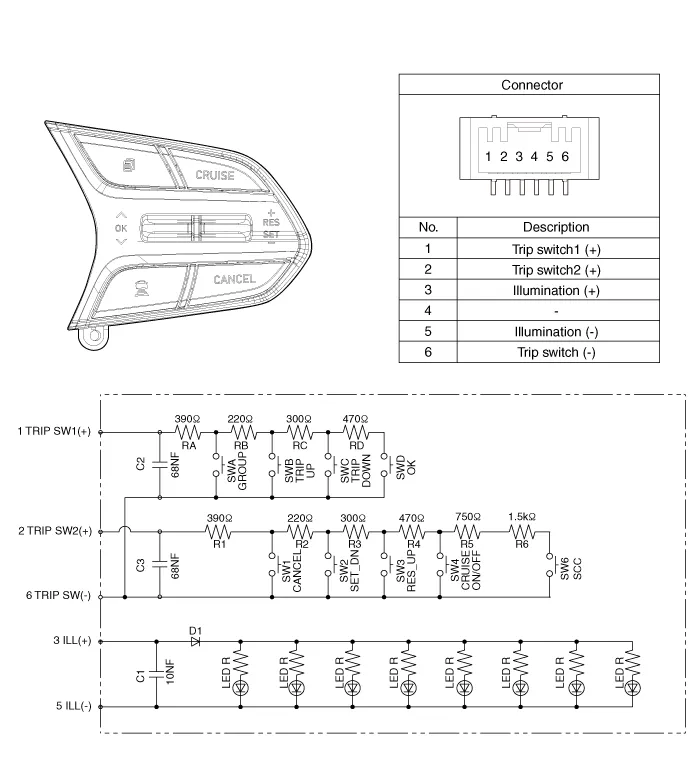

Hyundai Santa Fe (TM): Cruise Control System (CC) / Cruise Control (CC) Switch. Schematic diagrams
| Circuit Diagram |
Components 1. Remote control switch (Audio swtich) 2. Remote control switch (Cruise control switch)
Inspection 1. Check for resistance between terminals in left switch position. [Audio/Bluetooth] Switch Connector terminal Resistance (± 3%) SEEK Up 1 - 6 430 Ω SEEK Down 1 - 6 1.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Power Mosfet (DATC). Repair procedures
Inspection 1. Turn the ignition switch ON. 2. Manually operate the control switch and measure the voltage of the blower motor. 3. Select the control switch to raise the voltage until high speed.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Components and components location
