Hyundai Santa Fe (TM): Crash Pad / Crash Pad Under Cover. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Under Cover. Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

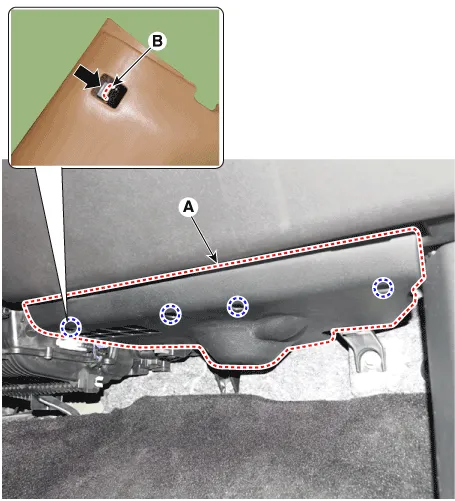

Press the lock pin (B) and then remove the crash pad under cover (A).
2.
To install, reverse removal procedure.

    Replacement    • Put on gloves to prevent hand injuries.

    Component Location 1. Crash Pad Lower Panel
