Hyundai Santa Fe (TM): Crash Pad / Crash Pad Lower Panel. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Lower Panel. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

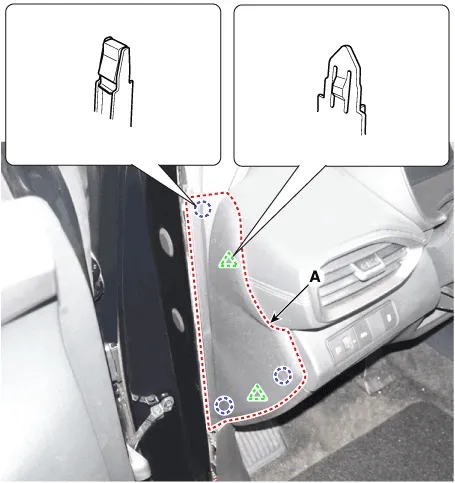

Using a screwdriver or remover, remove the crash pad side cover [LH] (A).
2.

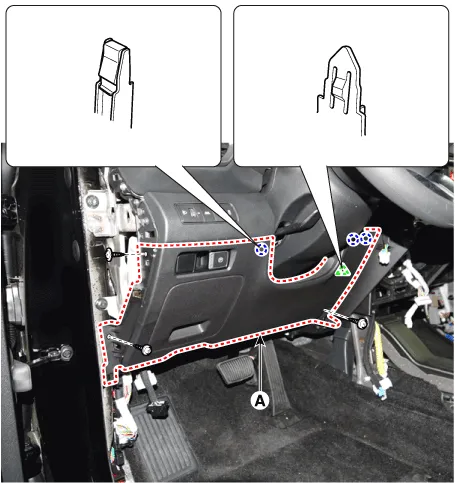

Loosen the mounting screws and remove the crash pad lower panel (A).
3.

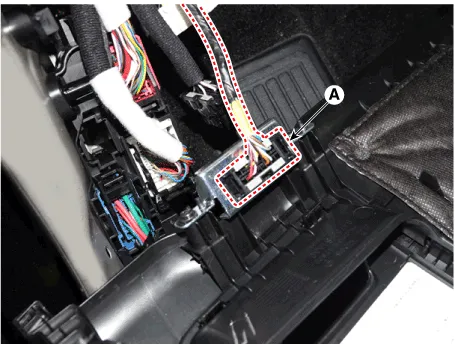

Disconnect the crash pad lower switch connectors (A).
4.
To install, reverse removal procedure.

•
Make sure the connector are connected in properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Crash Pad Lower Panel

    Component Location 1. Steering Column Shroud Lower Panel 2. Steering Column Shroud Upper Panel
