| Replacement |
|
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Recover the refrigerant with a recovery/recycling/charging station.
|
| 3. |
When the engine is cool, drain the engine coolant from the radiator.
(Refer to Engine Mechanical System - “Coolant”)
|
| 4. |
Remove the cowl top cover.
(Refer to "Cowl Top Cover")
|
| 5. |
Disconnect the inlet and outlet heater hoses from the heater unit.
(Refer to Heating,Ventilation And Air Conditioning - "Heater Unit")
|
| 6. |
Remove both sides of front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
| 7. |
Remove the main crash pad assembly.
(Refer to Crash Pad - "Main Crash Pad Assembly")
|
| 8. |
Disconnect the steering column connectors.
(Refer to Steering System - "Steering Column and Shaft")
|
| 9. |
Loosen the mounting nuts and through bolts in the frontal area and lower
the steering column.
(Refer to Steering System - "Steering Column and Shaft")
|
| 10. |

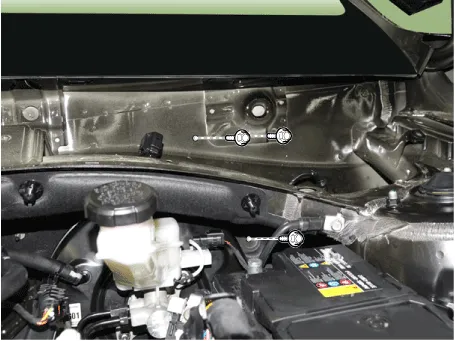

Loosen the engine room cowl cross bar assembly mounting bolts.
|
| 11. |

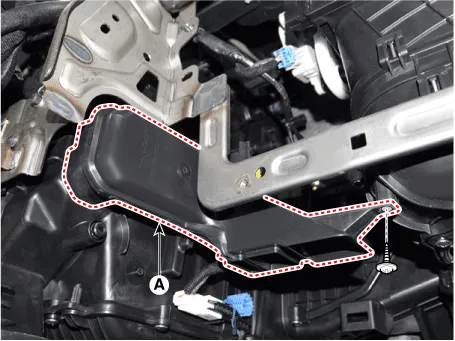

Loosen the mounting nuts and remove the floor air duct (A).
|
| 12. |

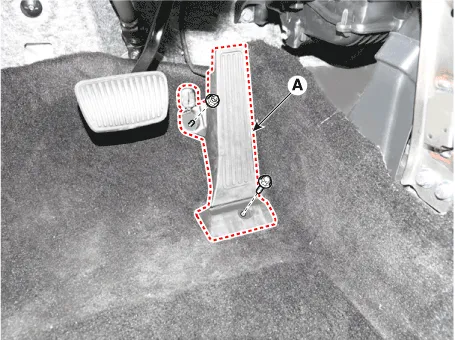

Loosen the mounting bolt and nut, remove the accelerator pedal module
(A).
|
| 13. |
Press the lock pin, separate the accelator pedal connector (A).
|
| 14. |

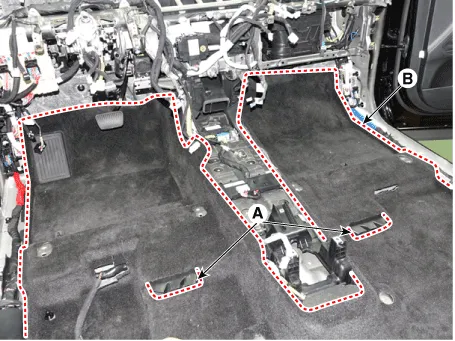

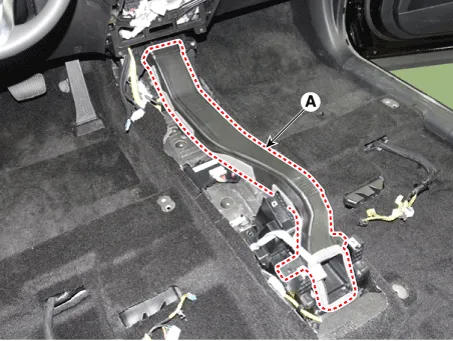

Remove the rear air duct (A) and then separate the floor carpet (B)
backwards.
|
| 15. |

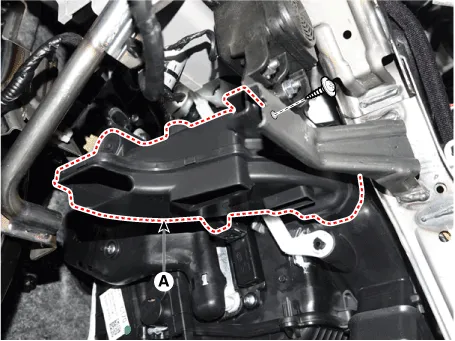

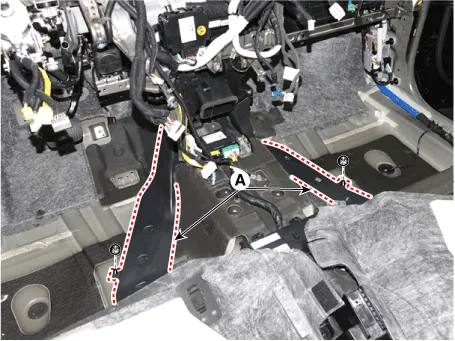

Loosen the mounting nuts and remove the rear heating duct (A).
|
| 16. |

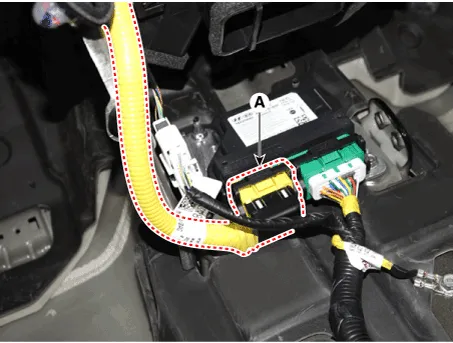

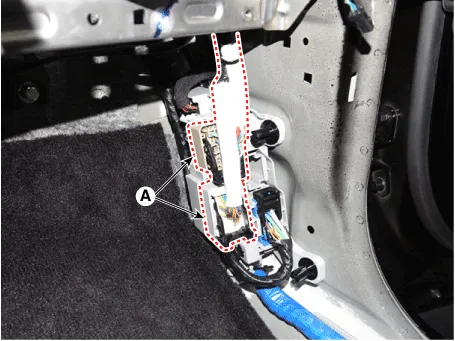

Press the lock pin and separate the airbag control module(SRSCM) connector
(A).
|
| 17. |

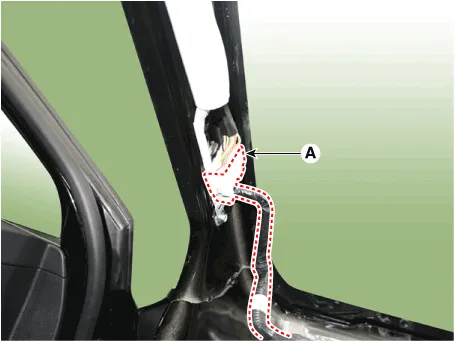

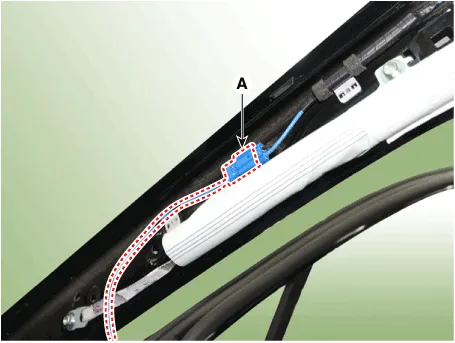

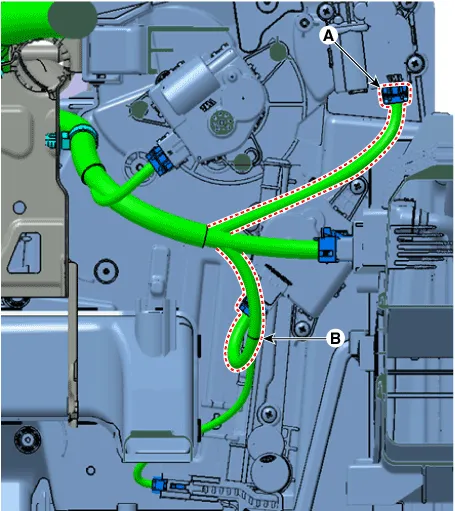

Disconnect the connector (A) and the mounting wiring fasteners in the
front pillar.
[Driver's]
[Passenger's]
|
| 18. |

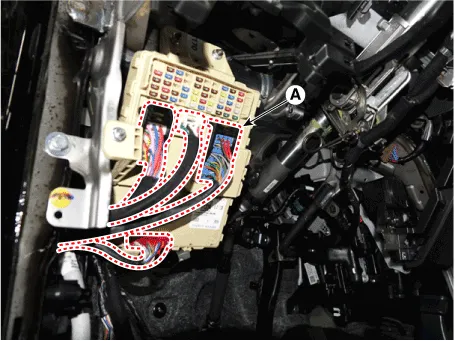

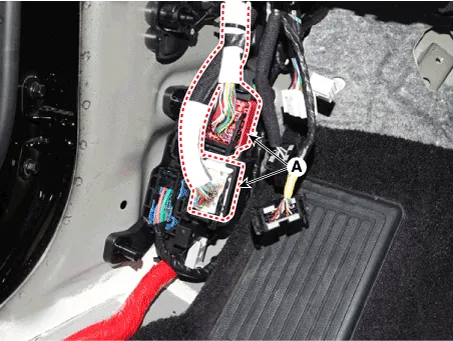

Disconnect the passenger compartment junction box connectors (A).
|
| 19. |
Disconnect the multi box connectors (A).
[Driver's]
[Passenger's]
|
| 20. |

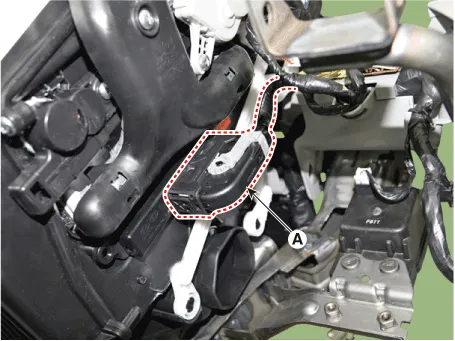

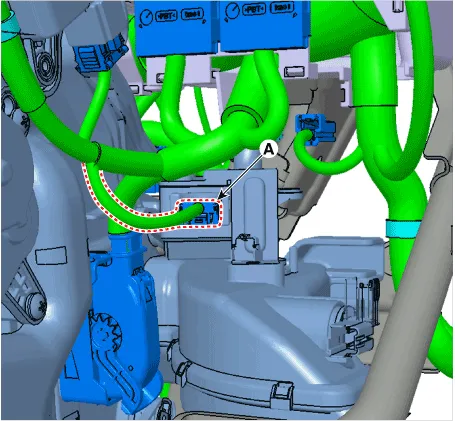

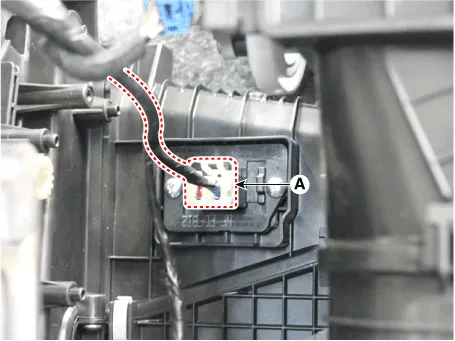

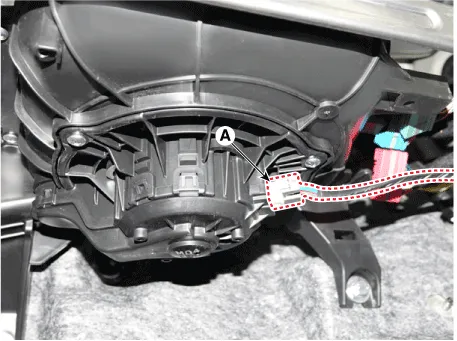

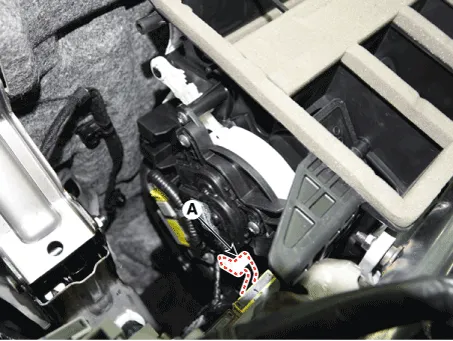

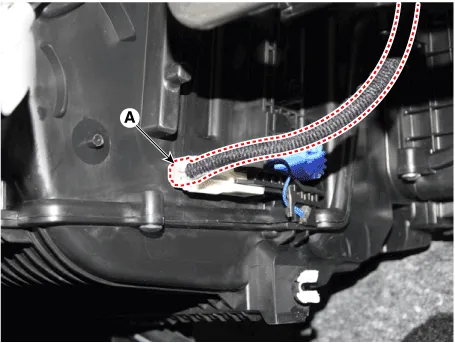

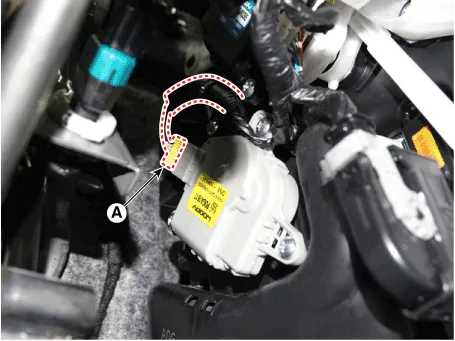

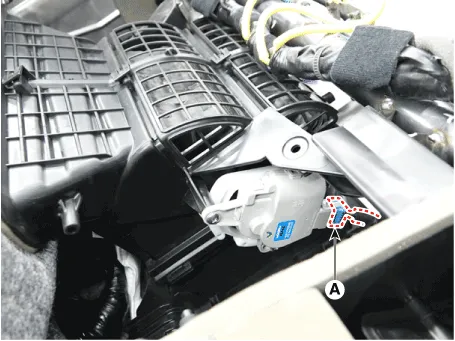

Disconnect the heater and blower unit connector.
|
| 21. |

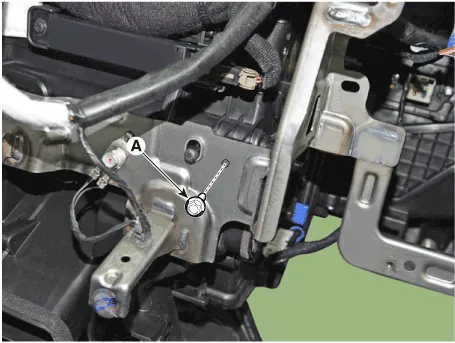

Loosen the heater & blower unit front mounting bolt (A).
|
| 22. |

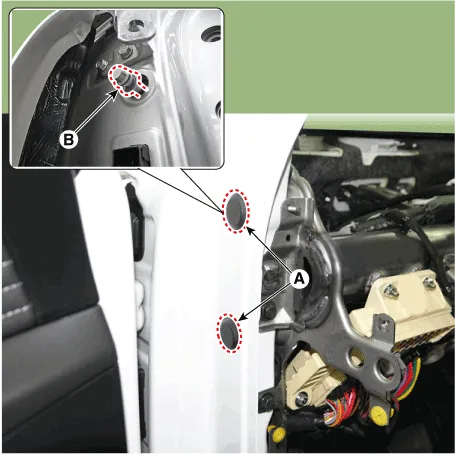

Loosening the cowl cross bar side mounting bolt (B) after loosening
the plug hole (A).
|
| 23. |

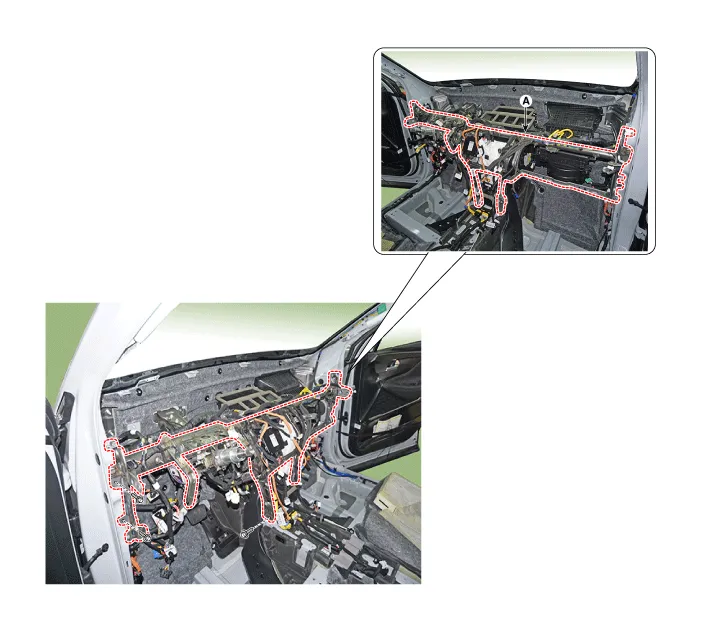

Loosen the mounting bolts and remove the cowl croos bar assembly (A).
|
| 24. |
To install, reverse removal procedure.
|
