Hyundai Santa Fe (TM): Crash Pad / Cowl Cross Bar Assembly. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Crash Pad / Cowl Cross Bar Assembly. Components and components location

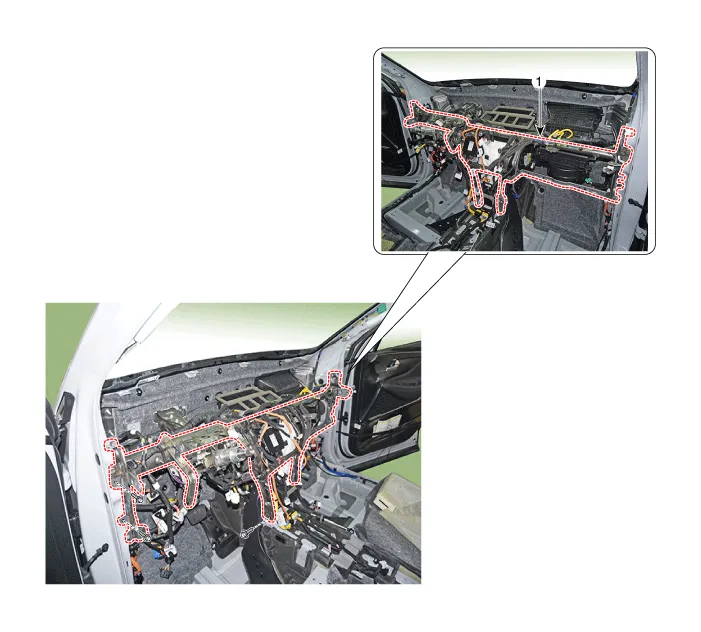

Component Location

1. Cowl cross bar assembly


    Replacement    • Put on gloves to prevent hand injuries.

    Replacement    • Put on gloves to prevent hand injuries.
