Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.
Remove the rear console cover.
(Refer to Floor Console - "Rear Console Cover")
3.

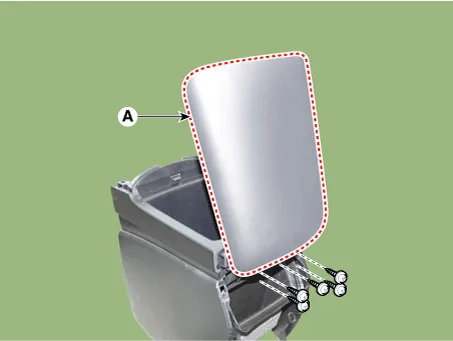

Loosen the mounting screws, remove the console armrest (A).
4.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Console Armrest
