Hyundai Santa Fe (TM): Wireless Power Charger System / Components and positions

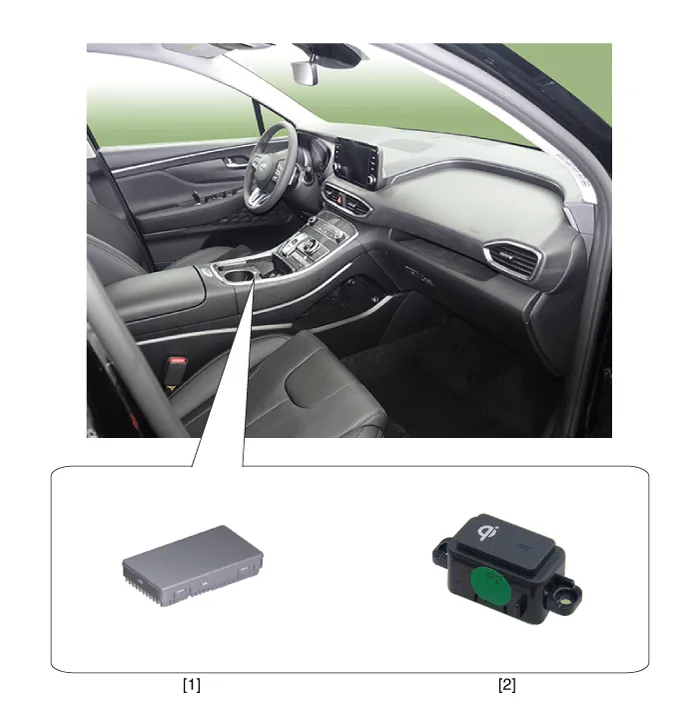

| Components |
| 1. Wireless power
charging unit |
2. Wireless power
charging lamp |
Description and Operation Wireless Power Charger System During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone.
Troubleshooting Wireless Power Charger System Troubleshooting Trouble status Inspection item Inspection Not charged Check the mobile phone status R-1 Amber LED blinks Overcurrent R-2 Overheating R-2 Foreign matter R-2 R-1.
