Hyundai Santa Fe (TM): SRSCM / Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Restraint / SRSCM / Components and components location
| Components |

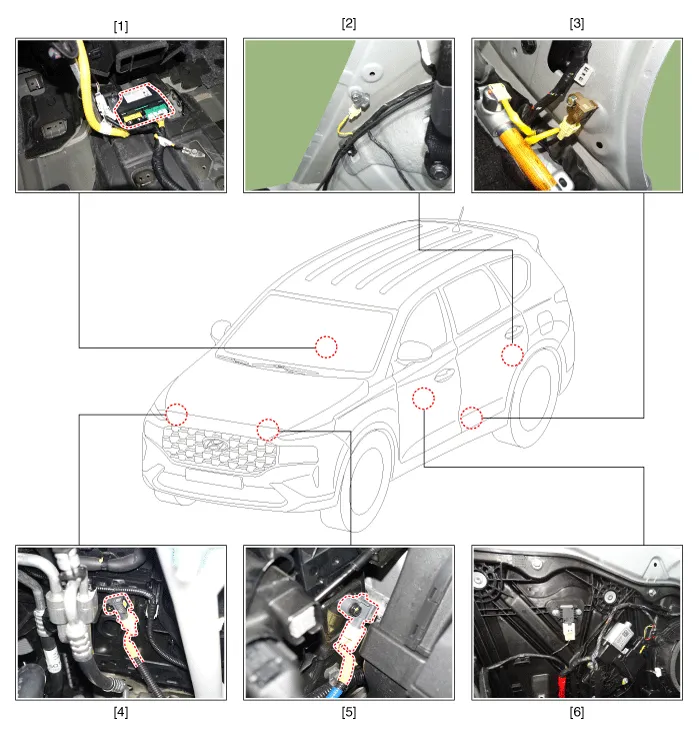

| 1. Supplemental
Restraint System Control Module (SRSCM) 2. Gravity side impact sensor (G-SIS) _ C pillar 3. Gravity side impact sensor (G-SIS) _ B pillar |
4. Front impact
sensor (FIS) [RH] 5. Front impact sensor (FIS) [LH] 6. Pressure side impact sensor (P-SIS) |
