Hyundai Santa Fe (TM): Steering wheel / Components and components location

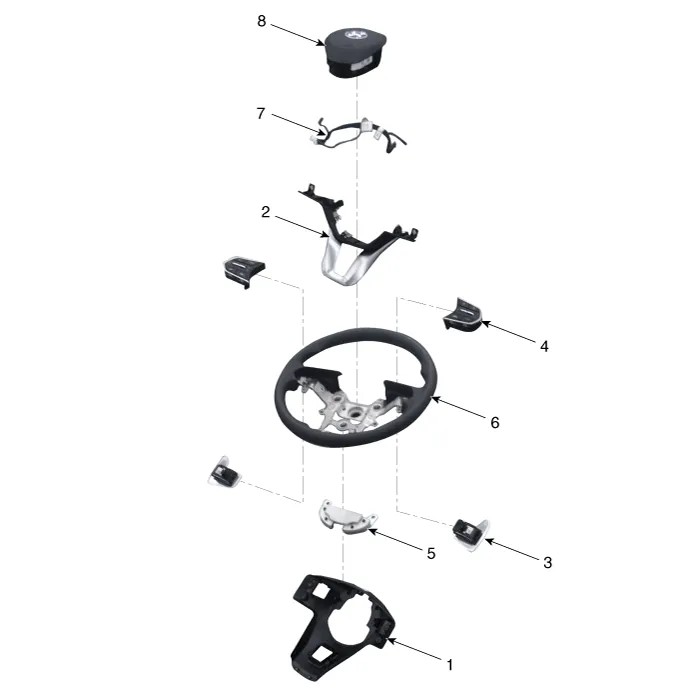

| Components |
| 1. Lower cover 2. Switch bezel 3. Remote control switch 4. Paddle shift |
5. Damper 6. Steering Wheel 7. Wiring 8. Drive airbag module (DAB) |
Removal 1. Turn the steering wheel so that the front wheels can face straight ahead. 2. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
