Hyundai Santa Fe (TM): Tire Pressure Monitoring System / Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Suspension System / Tire Pressure Monitoring System / Components and components location

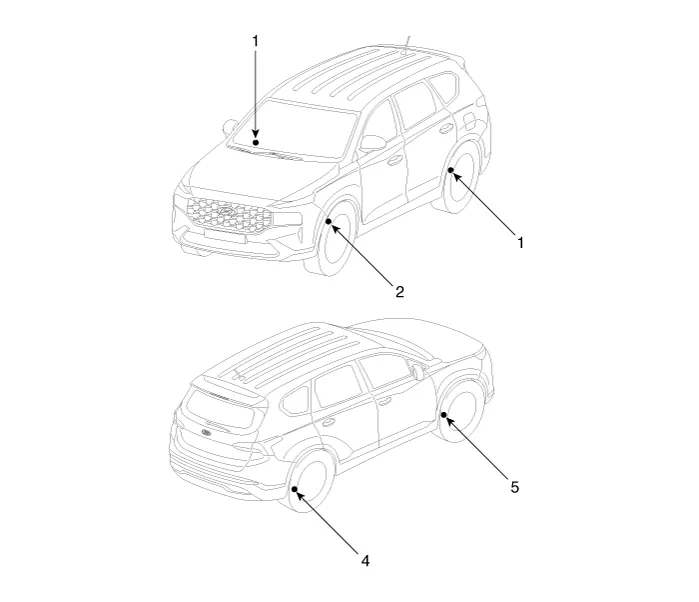

| Components Location |
| 1. Receiver 2. TPMS Sensor (FL) 3. TPMS Sensor (RL) |
4. TPMS Sensor
(RR) 5. TPMS Sensor (FR) |
Description TREAD Lamp – Tire Under Inflation / Leak Warning. 1. Turn on condition – When tire pressure is below allowed threshold – When rapid leak is detected by the sensor.
