| Components |
[2WD]

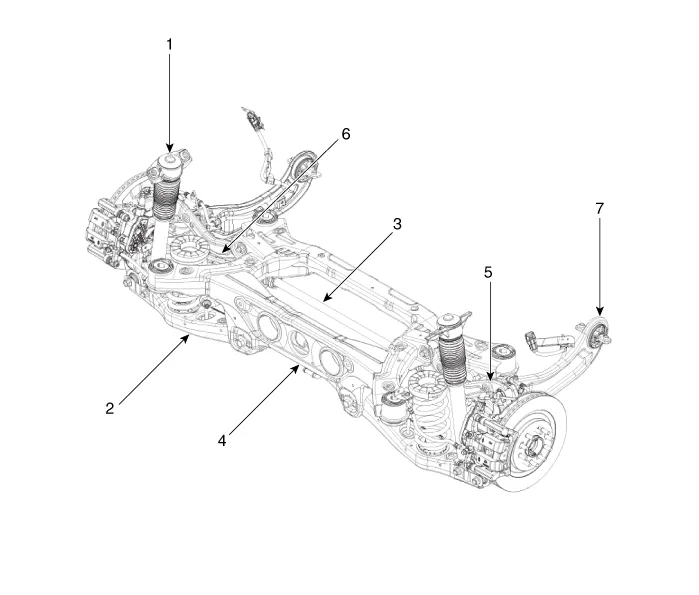

| 1. Rear shock
absorber 2. Rear lower arm 3. Rear stabilizer bar 4. Rear cross member |
5. Rear upper
arm 6. Rear assist arm 7. Trailing arm |
[4WD]

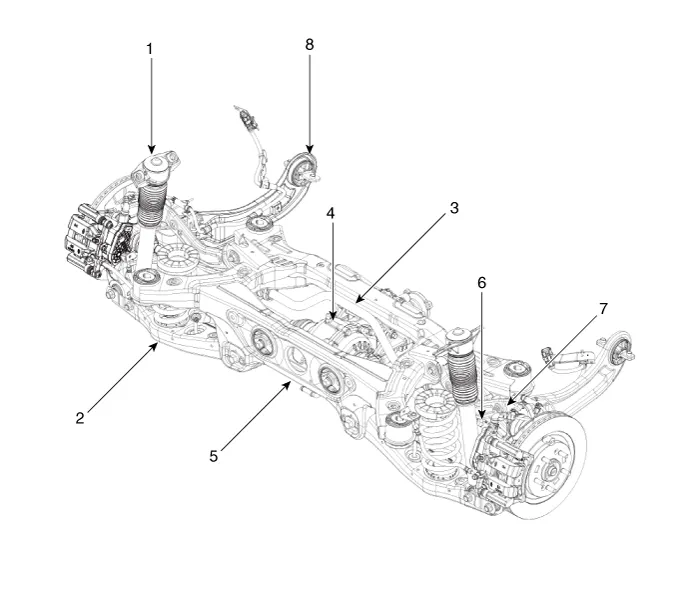

| 1. Rear shock
absorber 2. Rear lower arm 3. Rear stabilizer bar 4. Rear differential carrier |
5. Rear cross
member 6. Rear driveshaft 7. Rear upper arm 8. Trailing arm |
Components 1. Rear shock absorber 2. Dust cover 3. Bumper rubber 4. Insulator assembly 5. Lock nut 6.
