Hyundai Santa Fe (TM): Front Suspension System / Components and components location

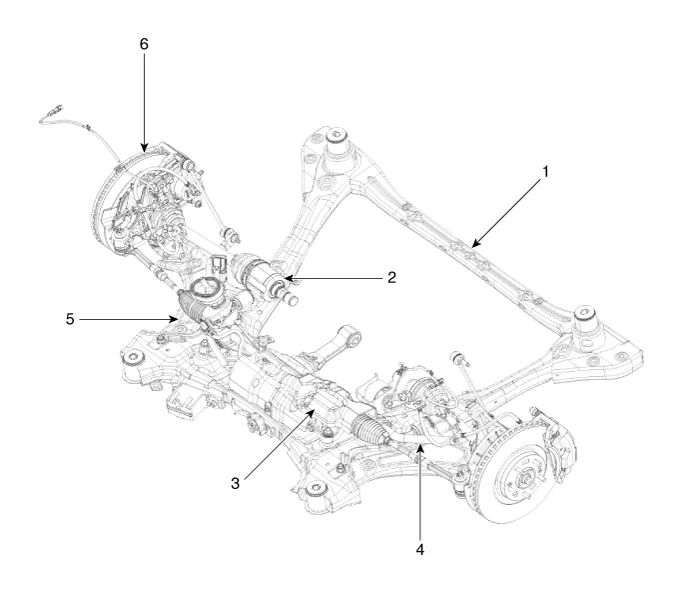

Components Location

1. Front sub frame
2. Drive shaft
3. Steering gear box
4. Front stabilizer bar
5. Front lower arm
6. Front knuckle assembly

    Components 1. Strut assembly 2. Spring lower pad 3. Dust cover 4. Coil spring 5. Spring upper pad 6. Bumper rubber 7.
