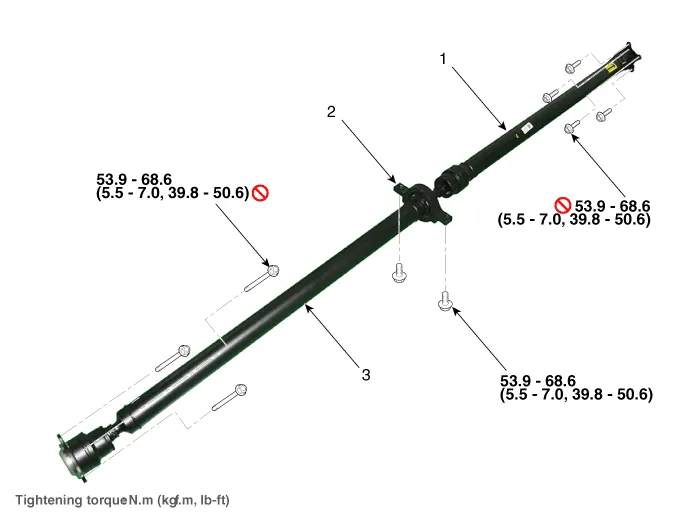

Components

1. Front propeller shaft
2. Center bearing bracket

3. Rear propeller shaft

❮Propeller Shaft Assembly

Repair procedures❯

Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
