Hyundai Santa Fe (TM): Rear Driveshaft Assembly / Components and components location

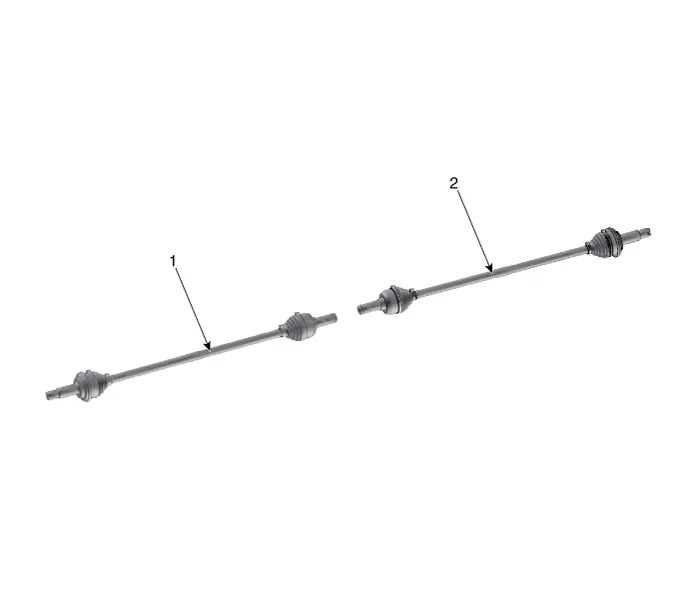

| Components |
|
1. Rear drive shaft (left) |
2. Rear drive shaft (right) |
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
