Hyundai Santa Fe (TM): 4WD Control System / Components and components location

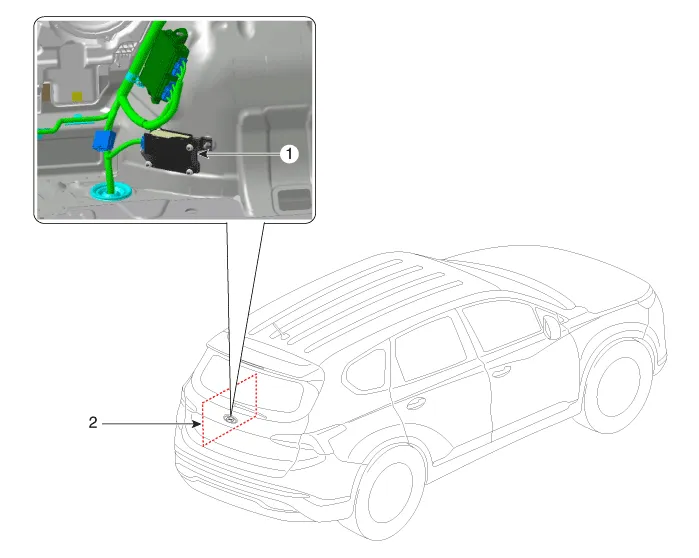

| Components Location |
|
1. 4WD ECU |
2. Luggage side trim [Left side] |
Description The AWD ECU distributes the driving force to the front/rear wheel through controlling the multi plate clutch on the AWD transfer case by analyzing the input information, i.
Power Flow Diagram 4WD ECU Input&Output Diagram
