Hyundai Santa Fe (TM): Coupling Assembly / Components and components location

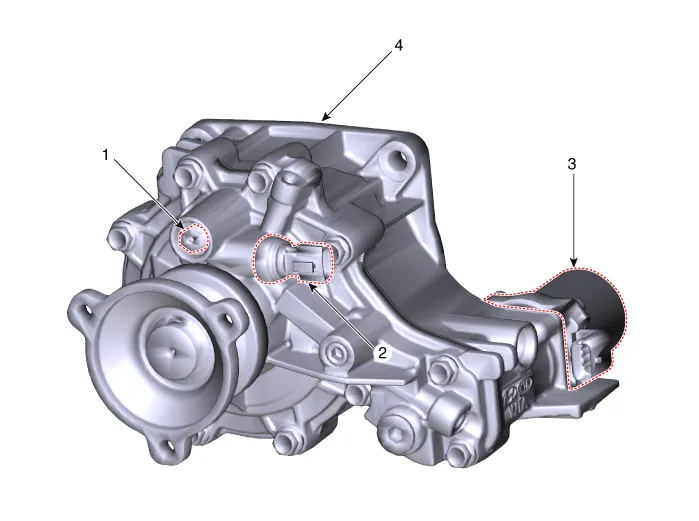

| Component Location |
|
1. Relif valve 2. Pressure sensor |
3. Oil hydraulic motor 4. Coupling assembly |
Description 4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision control over the 4WD coupling's multi-plate clutch and variably adjust the amount of torque delivered tothe rear wheels.
