| Components Location |

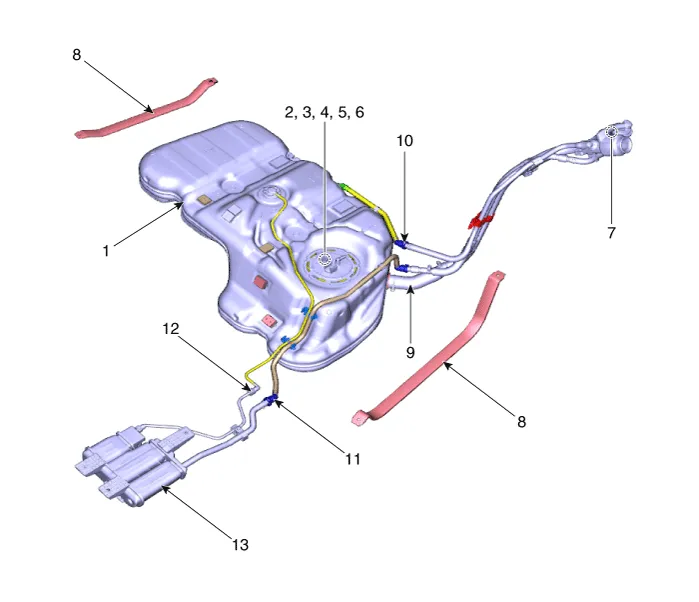

| 1. Fuel tank 2. Fuel pump 3. Fuel filter 4. Fuel pump motor 5. Fuel level sender (FLS) 6. Fuel pressure regulator 7. Fuel tank air filter |
8. Fuel tank
band 9. Fuel filler hose 10. Leveling hose 11. Vent hose 12. Vapor tube 13. Canister |
Fuel Pressure Test 1. Release the residual pressure in fuel line. (Refer to Delivery System - "Release Residual Pressure in Fuel Line") • When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur.
