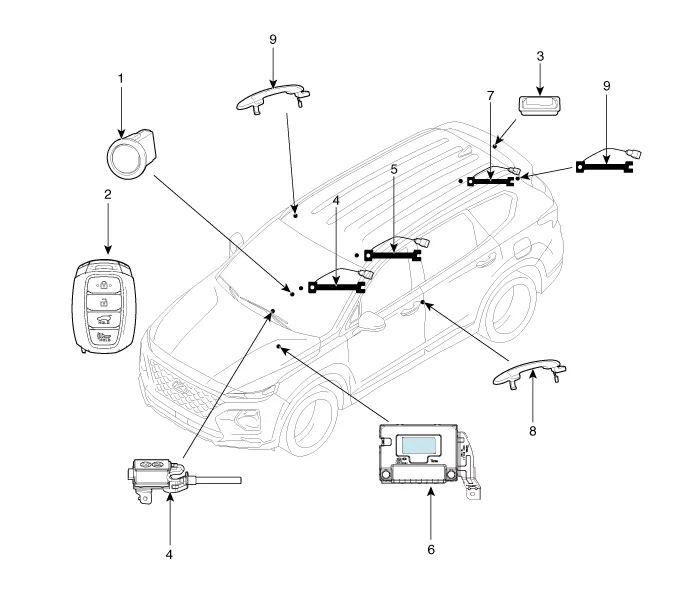

Component Location

1. Start Stop Button(SSB)
2. FOB key
3. Tailgate open switch
4. Interior antenna 1
5. Interior antenna 2
 6. Intergrated Body Control Unit (IBU)
7. Trunk antenna
8. Door handle & door antenna
9. Bumper antenna

    Description System Overview The System offers the following features: – Changing the state of engine ignition and power by using the start button.
