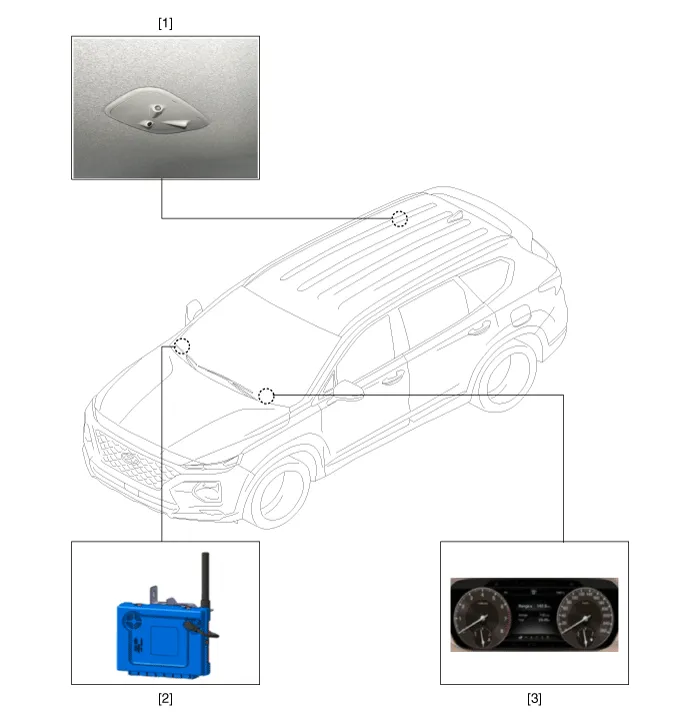

Components

1. Rear Occupant Alert Sensor
2. Integrated body control unit

3. Cluster (Message pop-up and Voice)

❮Description and operation

Description The system detects the passenger in the vehicle and prevents the driver from getting off the vehicle with the passenger in the back.

Repair procedures❯

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the cover (A) by using a flat-tip screwdriver.
