Hyundai Santa Fe (TM): Head Up Display System / Components and components location

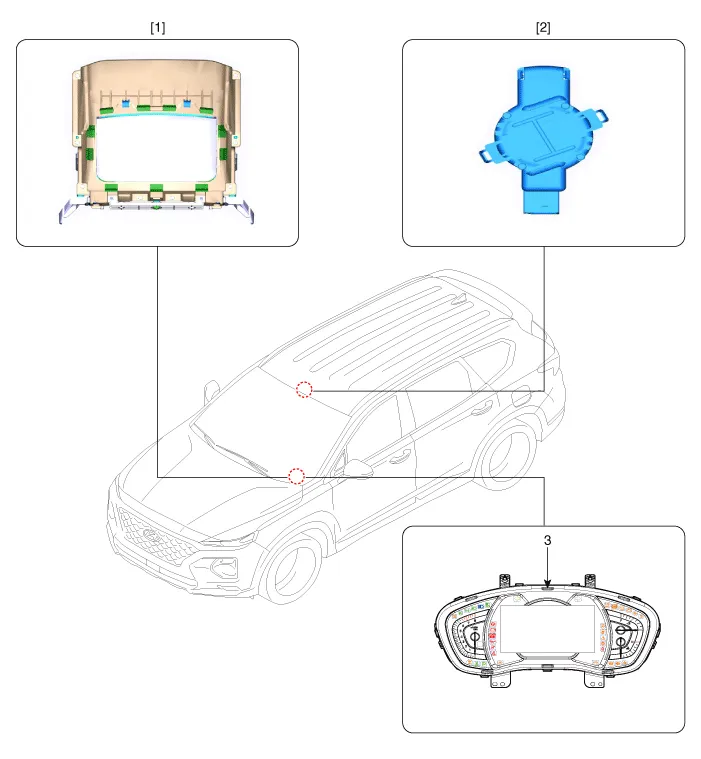

| Components Location |
| 1. Head Up Display
(HUD) 2. Rain(Light) sensor |
3. Cluster (User
setting menu On/Off) |
Description 1. System operation HUD system displays various information on the windshield glass which minimizes the driver’s eye movement to enhance safety and convenience.
