Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Windshield Wiper/Washer / Components and components location

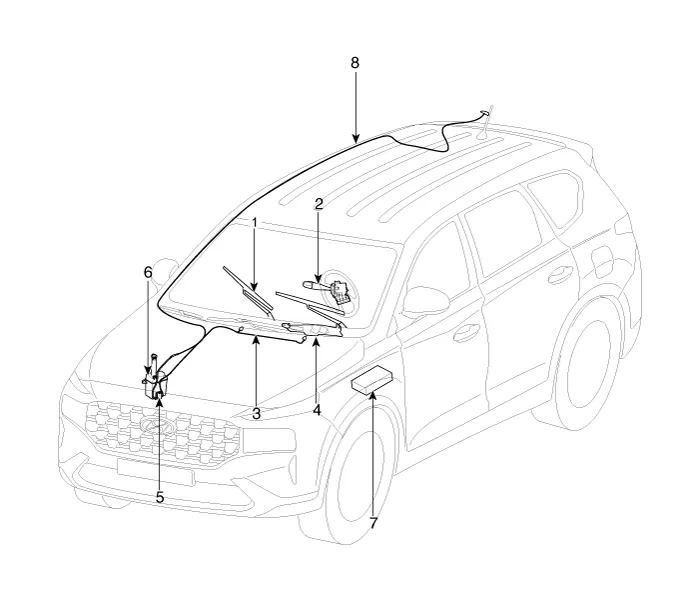

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
 5. Washer motor
6. Washer reservoir
7. Front wiper relay (Engine room relay box)
8. Rear washer hose & nozzle

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel.
