Hyundai Santa Fe (TM): Power Tailgate Module / Components and components location

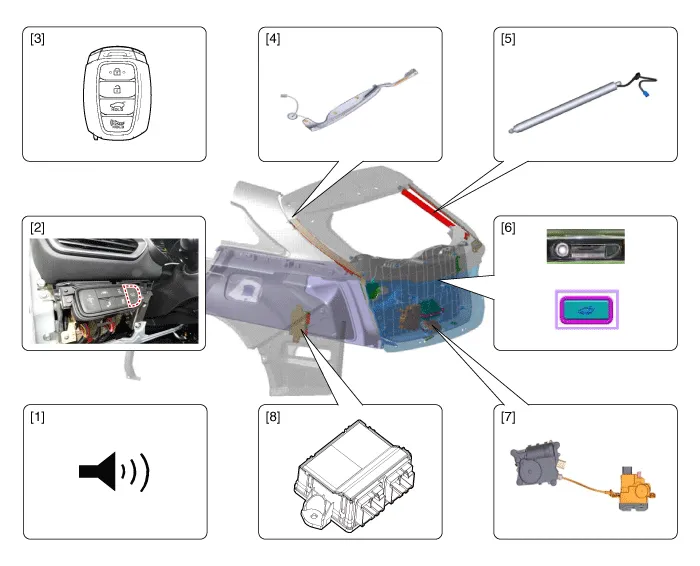

| Component Location (1) |
| 1. Buzzer 2. Console S/W 3. RKE 4. Anti Pinch Strip |
5. Spindle Drive 6. Tailgate Trim Switch 7. Power Latch 8. PTG Control Module |
Description Power tailgate is an electro-mechanical system designed to provide power opening and closing of the tailgate through the push of a button of a remote key (fob), console switch, inner switch or an outside handle switch of the tailgate.
Inspection Tailgate normal operation transmit / receive process • FOB key Switch : FOB key Switch → BMC / SMK → CAN communication → PTG Module • Driver Switch : Driver Switch → Wiring → PTG Module • Outer Switch : Outer Switch → Wiring → SJB → CAN communication → PTG Module ① Press the power tailgate open switch ② Transmit / receive power tailgate open signal via CAN communication and wiring ③ Power tailgate open • The operation of the power tailgate is activated by mutual communication with the vehicle's module and switch.
