Hyundai Santa Fe (TM): IMS (Integrated Memory) / Components and components location

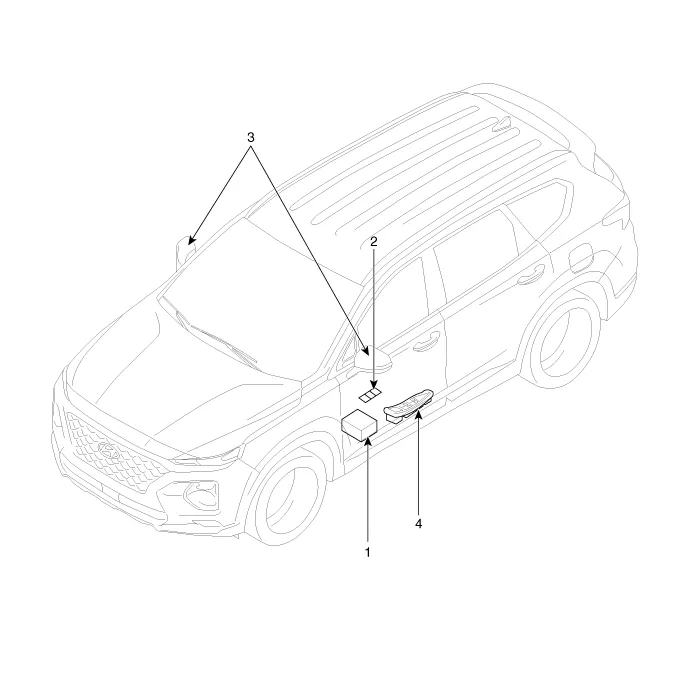

| Component Location |
| 1. Seat Memory
Unit (IMS) 2. IMS control switch |
3. Outside mirror 4. IMS mirror control (Driver power window switch) |
Description The optimal seat position set by the driver is memorized into the power seat unit by using IMS switch. In case of the position change, the seat can restore its preset position by IMS switch.
Specifications Memory Power Seat Unit Item Specification Rating voltage DC 12V Operation voltage DC 9V - 16V Operation temperaure -30°C to 75°C parastic current Max.
