Hyundai Santa Fe (TM): Keyless Entry And Burglar Alarm / Components and components location

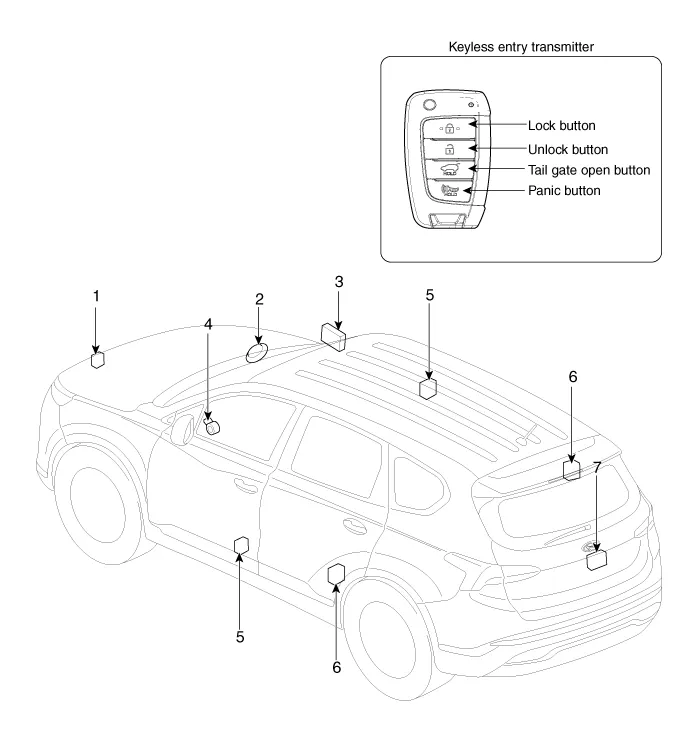

| Component Location |
| 1. Hood switch 2. Burglar horn 3. Intergrated Body Control Unit (IBU) 4. Key warning switch |
5. Front door
lock actuator & switch 6. Rear door lock actuator & switch 7. Tailgate open switch |
Description Burglar Alarm State [B/A State] B/A State Description DISARM 1) In "DISARM" state, no vehicle start inhibition.
Specification Item Specification Power source 3V Operating temperature -20°C to +60°C (-4°F to- +140°F) RF Modulation FSK LF Modulation ASK RF frequency 433.
