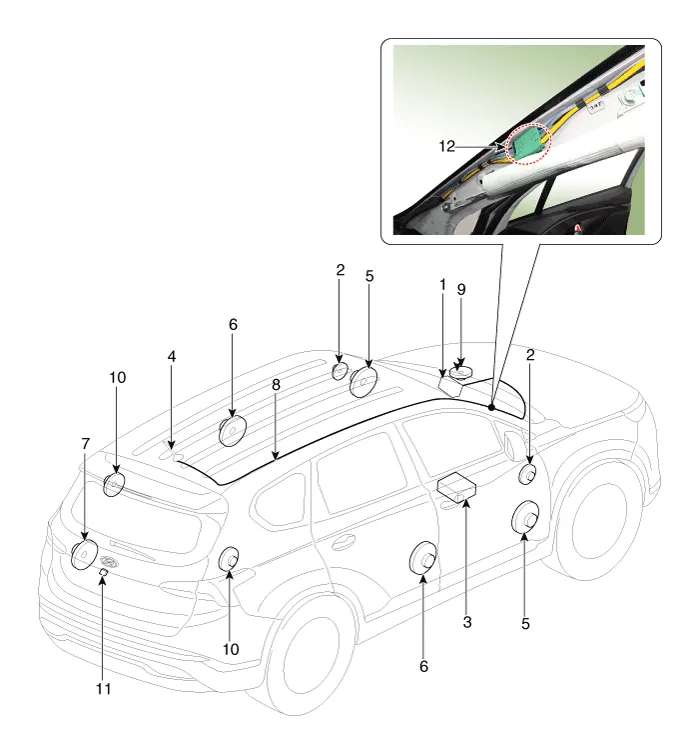

Components Location

1. AVN (A/V & Navigation head unit)
2. Tweeter speaker
3. External amplifier
4. Roof antenna
5. Front door speaker
6. Rear door speaker
 7. Subwoofer speaker
8. Antenna feeder cable
9. Center speaker
10. Surround speaker
11. Back view camera
12. Feeder cable joint connector

    Description AVN system The AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of the user information such as multimedia and car information.

    Specifications Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space FM : 87.
