Hyundai Santa Fe (TM): Front Bumper / Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Bumper / Components and components location

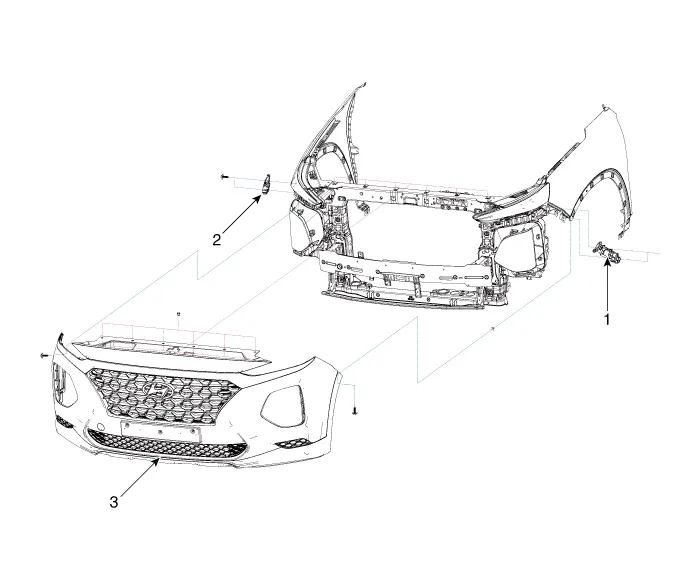

Components

1. Front bumper side bracket [LH]
2. Front bumper side bracket [RH]
 3. Front bumper assembly

    Component Location 1. Front Bumper Assembly
