Hyundai Santa Fe (TM): Trunk Trim / Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Trunk Trim / Components and components location

Components

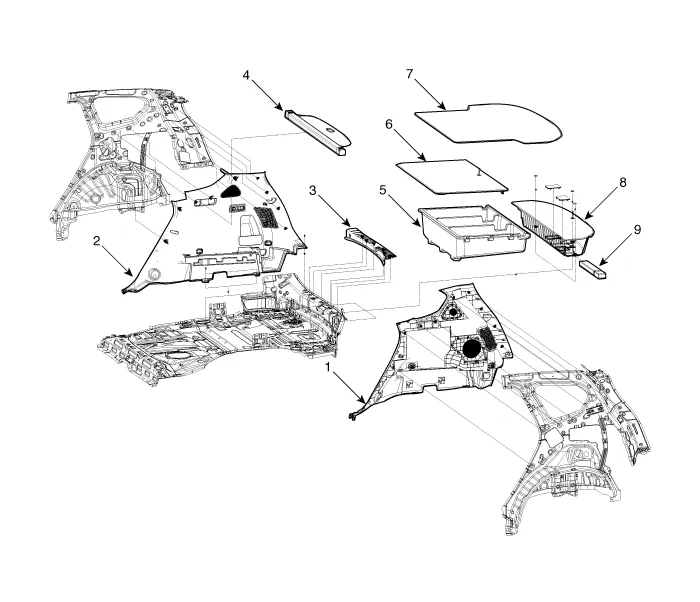

[5 seat vehicle]

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Cargo screen
5. Luggage floor tray
 6. Luggage board
7. Luggage met
8. Luggage floor box rear trim
9. Car warning triangle assembly

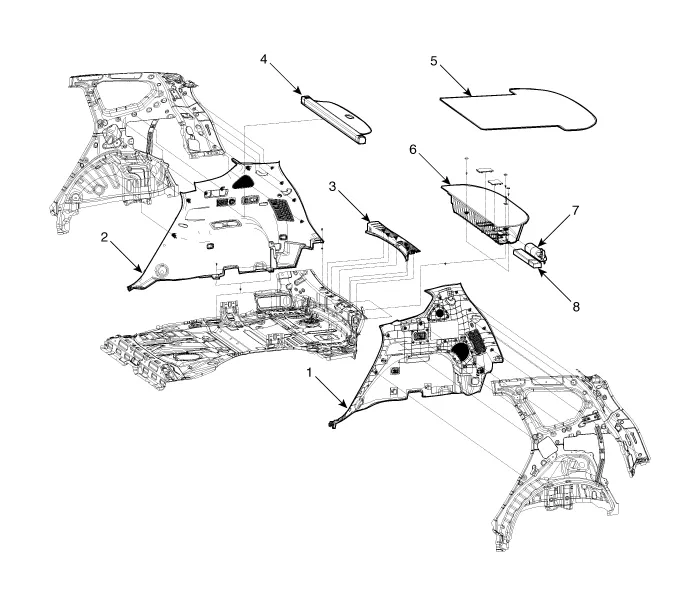

[7 seat vehicle]

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Cargo screen
 5. Luggage met
6. Luggage floor box rear trim
7. Fire extinguisher
8. Car warning triangle assembly

    Component Location 1. Rear Transverse Trim
