Hyundai Santa Fe (TM): Floor Console / Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Floor Console / Components and components location

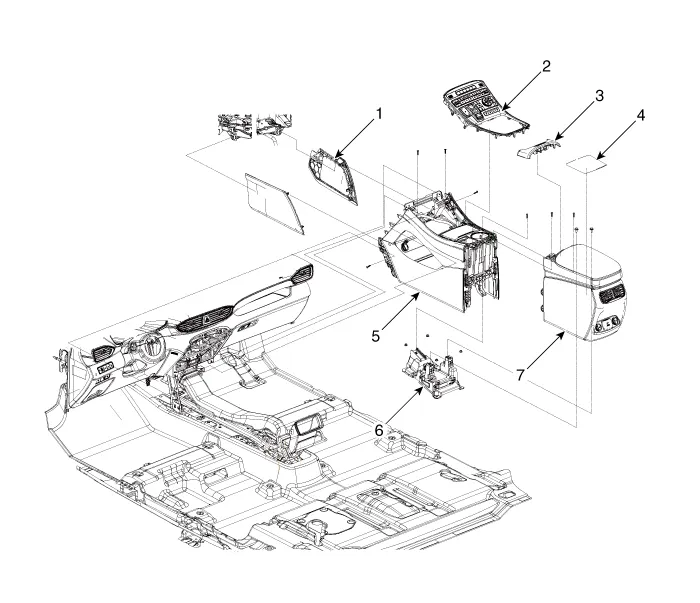

| Components |
| 1. Floor console
side cover 2. Floor console upper cover 3. Console armrest lock assembly 4. Storage box mat |
5. Front floor
console assembly 6. Rear console mounting bracket assembly 7. Rear floor console assembly |
Component Location (1) 1. Front Console Assembly Component Location (2) 1.
