Hyundai Santa Fe (TM): Panorama Sunroof / Components and components location

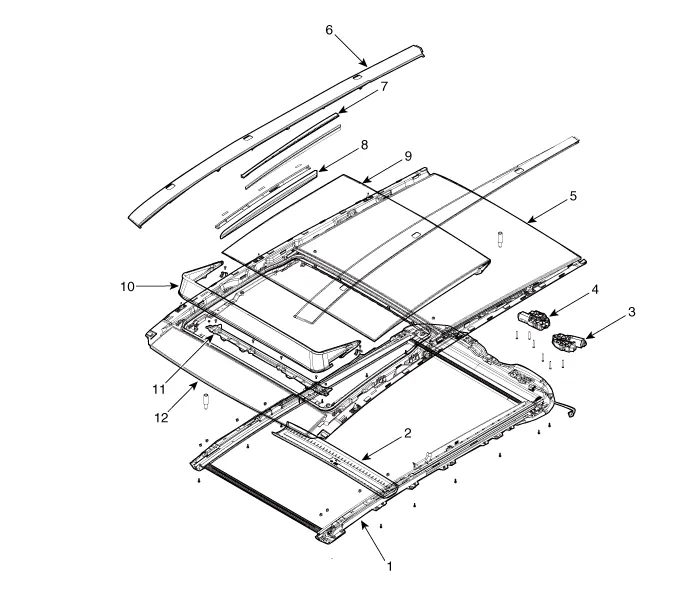

| Component |
| 1. Mechanism
rail assembly 2. Center cover assembly 3. Roller blind motor 4. Glass motor 5. Panorama sunroof panel 6. Side molding |
7. Decoration
inner cover 8. Decoration outer cover 9. Movable glass assembly 10. Wind deflecter assembly 11. Front cover assembly 12. Front glass |
Alignment Glass step alignment 1. Perform considerable step alignment after replacing movable glass (A). â‘ â‘¡ â‘¢ 2.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Front View Camera Unit. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the inside rear view mirror cover (A) and front view camera cover (B). 3.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: ADAS Parking ECU (ADAS_PRK). Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the carash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the crash pad center panel.
