Hyundai Santa Fe (TM): Crash Pad / Cluster Fascia Panel. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

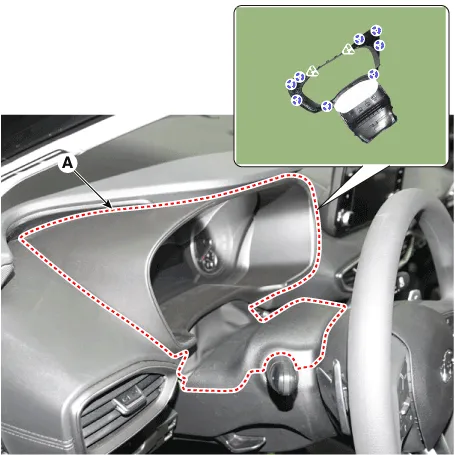

Using a screwdriver or remover, remove the cluster fascia panel (A).
2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Cluster Fascia Panel

    Replacement    • Put on gloves to protect your hands.
