Hyundai Santa Fe (TM): Interior Trim / Center Pillar Trim. Repair procedures
[Center pillar lower trim]
| •
|
Put on gloves to prevent hand injuries.
|
|
| •
|
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| •
|
When removing the interior trim pieces, use a plastic panel
removal tool not to damage the surface.
|
| •
|
Take care not to bend or scratch the trim and panels.
|
|
|
1. |
Remove the front door scuff trim.
(Refer to Interior Trim -"Door Scuff Trim")
|
|
2. |
Remove the rear door scuff trim.
(Refer to Interior Trim -"Rear Scuff Trim")
|
|
3. |

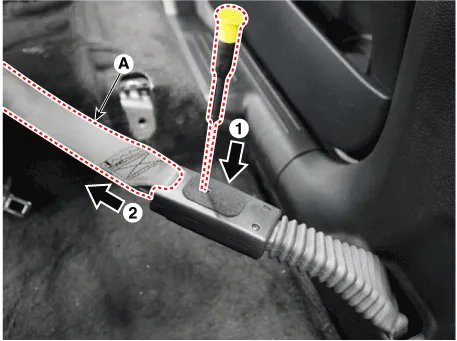

Remove the front seat belt anchor (A).
|
• |
When installing the connector, be sure to insert it
to the anchor pretensioner until "Click" sound is heard
and then check it for secure installation by pulling
it.
|
|
|
|
4. |

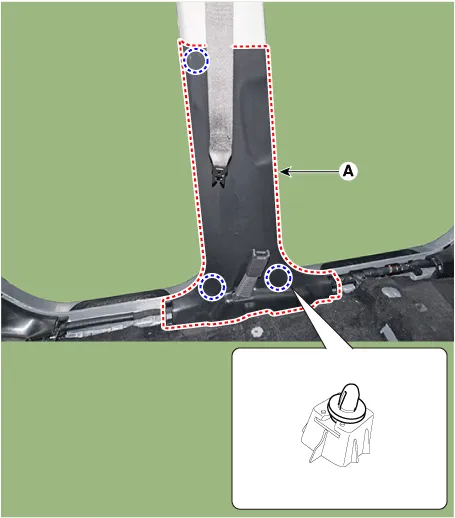

Using a remover and remove the center pillar lower trim (A)
|
|
5. |
To install, reverse removal procedure.
|
• |
Replace any damaged clips (or pin-type retainers).
|
|
|
[Center pillar upper trim]
| •
|
Put on gloves to prevent hand injuries.
|
|
| •
|
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| •
|
When removing the interior trim pieces, use a plastic panel
removal tool not to damage the surface.
|
| •
|
Take care not to bend or scratch the trim and panels.
|
|
|
1. |
Remove the center pillar lower trim.
(Refer to Interior Trim -"Center Pillar Lower Trim")
|
|
2. |

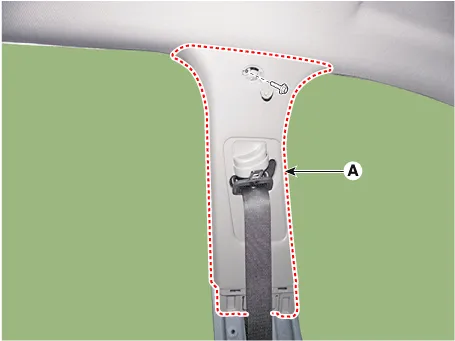

Loosen the mounting bolt and remove the center pillar upper trim (A).
|
|
3. |
To install, reverse removal procedure.
|
• |
Replace any damaged clips (or pin-type retainers).
|
|
|
Component Location
1. Center Pillar
Lower Trim
2. Center Pillar
Upper Trim
Component Location
1. Rear Pillar
Trim
