Removal

•
Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Turn the ignition switch OFF and disconnect the battery (-) terminal.
2.

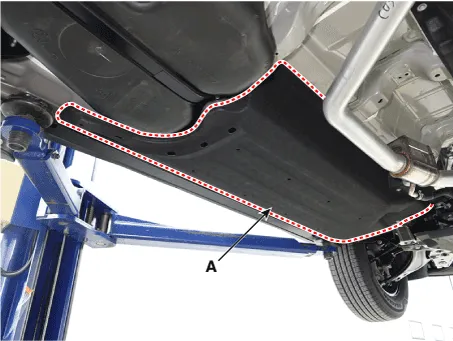

Remove the floor under cover (A).
Tightening Torque :
7.9 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

3.

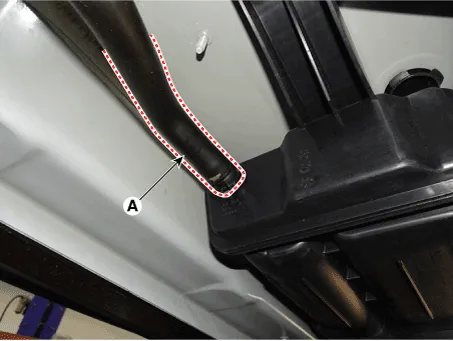

Disconnect the vent hose (A).
4.

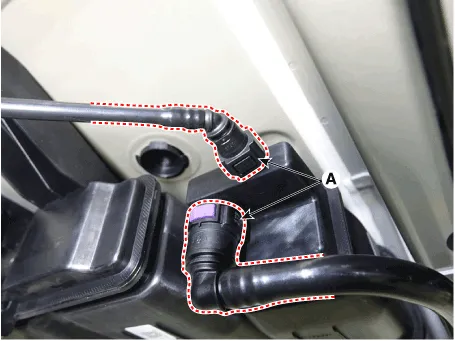

Disconnect the vapor hose quick-connector (A).
5.

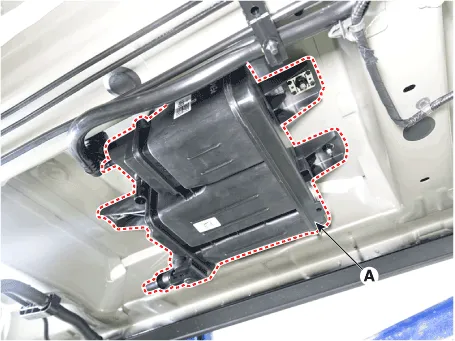

Remove the canister (A) after loosening the mounting nuts.
Tightening Torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.7 lb-ft)

Installation
1.
Install in the reverse order of removal.
Inspection
1.
Check for the following items visually.
–
Cracks or leakage of the canister
–
Loose connection, distortion, or damage of the vapor hose/tube

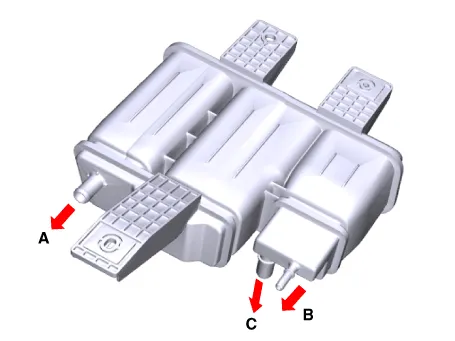

A : Canister ↔ Atmosphere
B : Canister ↔ Fuel Tank
C : Canister ↔ Intake Manifold
