Hyundai Santa Fe (TM): Blower / Blower Unit. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Heating,Ventilation And Air Conditioning / Blower / Blower Unit. Components and components location

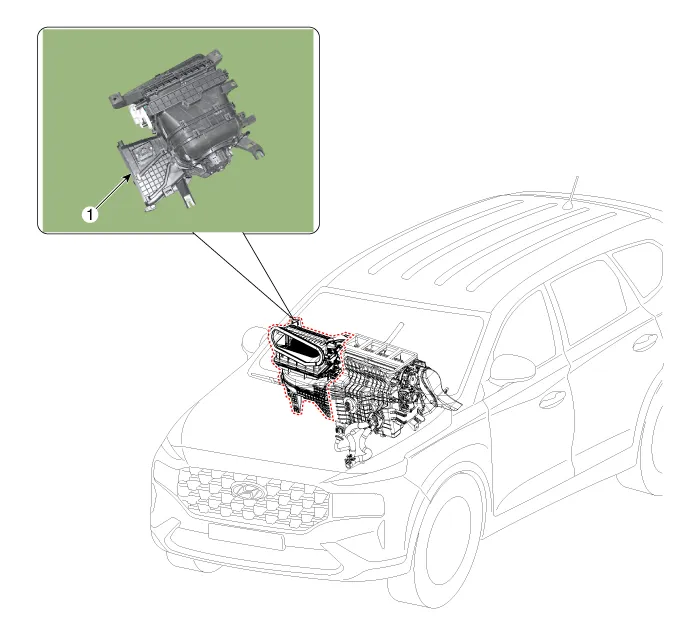

Components Location

1. Blower unit assembly

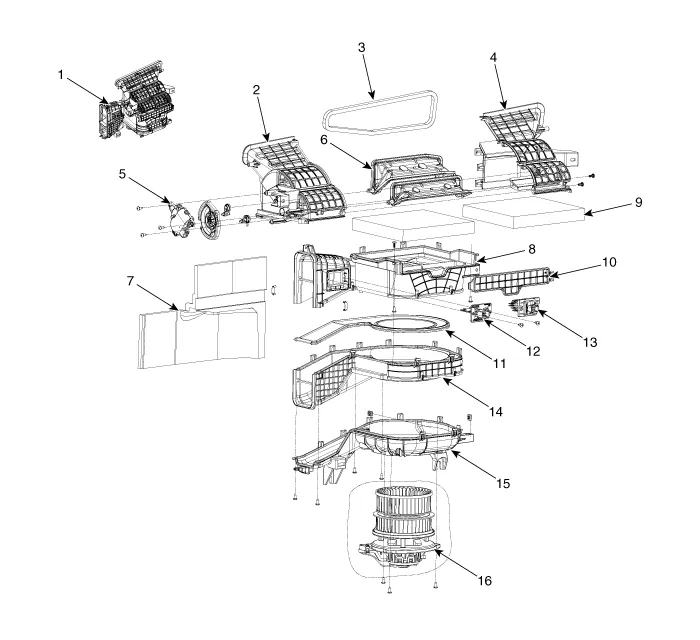

Components

1. Blower unit assembly
2. Inlet case [LH]
3. Inlet seal
4. Inlet case [RH]
5. Intake actuator
6. Inlet door assembly
7. Blower NVH pad
8. Blower upper case
 9. Climate control actuator
10. Air filter cover
11. Blower divider plate
12. Blower resistor (Manual)
13. Power mosfet (DATC)
14. Blower lower case
15. Blower lower cover
16. Blower motor assembly

    Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station.
