Hyundai Santa Fe (TM): Lubrication System / Balance Shaft Module. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Mechanical System / Lubrication System / Balance Shaft Module. Repair procedures

Removal

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the oil pump.
(Refer to Lubrication System - "Oil Pump")
2.

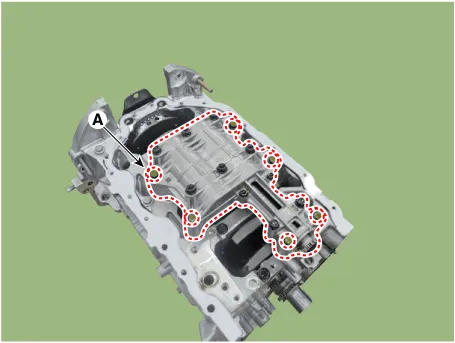

Remove the balance shaft module (A).


•
When removing the BSM, remove it in sequence as below picture.
Installation
1.
Install the balance shaft module (A).


•
When installing the balance shaft module, tighten the bolts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

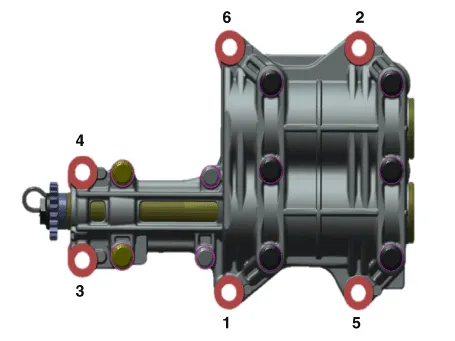

1 STEP : Tighten the bolts in sequence as below picture.

2 STEP : Loosen the bolts in sequence as below picture.

3 STEP : Tighten the bolts in sequence as below picture.
Tightening torque :
17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb-ft) + 58° - 62°

2.
Install the oil pump.
(Refer to Lubrication System - "Oil Pump")
