Removal
1.
Disconnct the negative (-) battery terminal.
2.

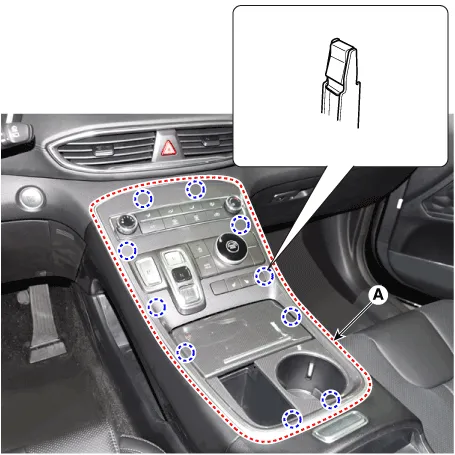

Using a remover, remove the console upper cover (A).
3.

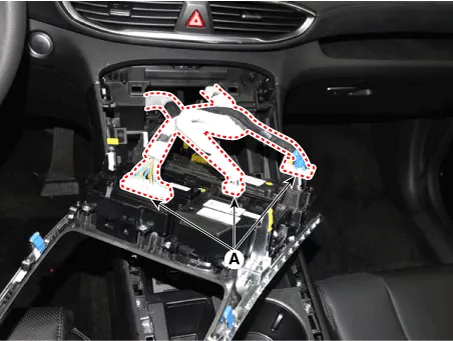

Disconnect the console upper cover connector (A).
4.

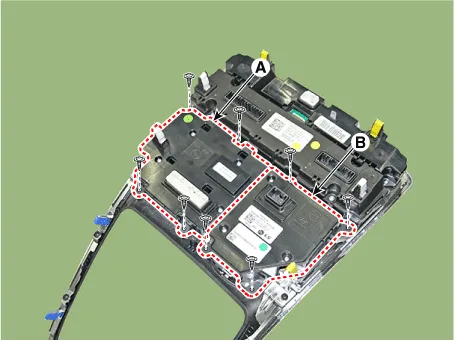

Remove the drive mode unit (A) and SBW switch assembly (B) after loosening mounting screws.
5.

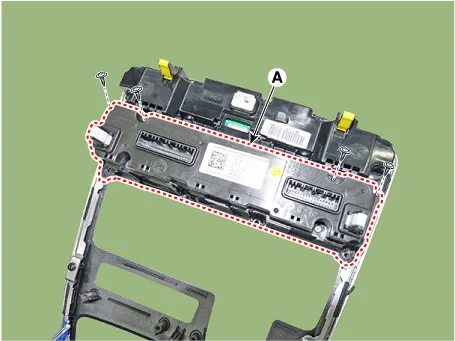

Remove the heater & A/C contorl switch (A).
6.

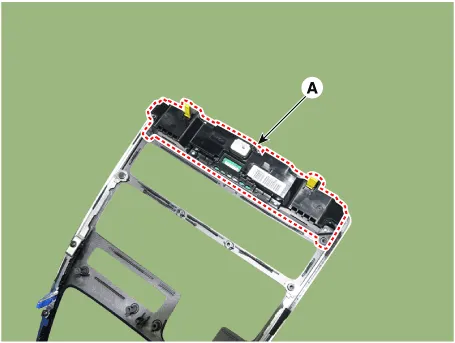

Remove the AVN keyboard assembly (A) after loosening mounting screws.
Installation
1.
Install the AVN keyboard unit.
2.
Install the heater & A/C contorl switch
3.
Install the drive mode unit and SBW switch assembly.
4.
Install the console upper cover.
5.
Connect the negative (-) battery terminal.

•
Make sure the connector are connected in properly.
•
Check the AVN system.
