Hyundai Santa Fe (TM): AVN System / AVN Keyboard Assembly. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / AVN System / AVN Keyboard Assembly. Components and components location

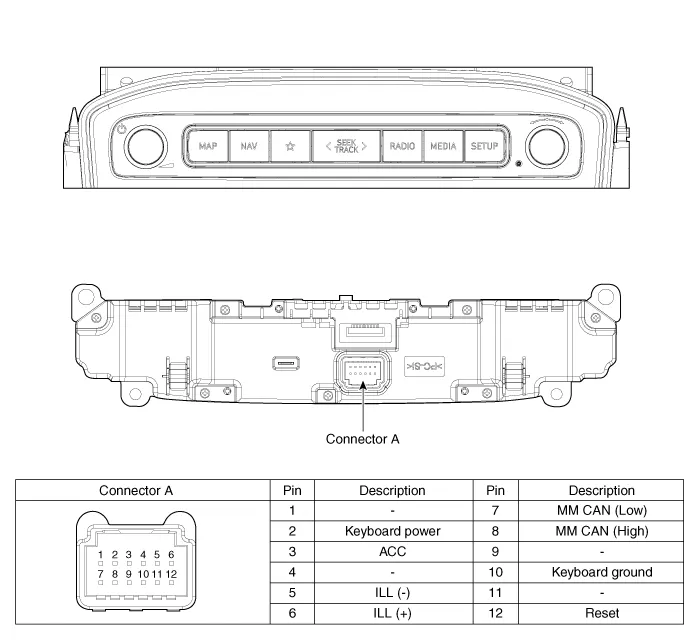

Components

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear roof trim.

    Removal 1. Disconnct the negative (-) battery terminal. 2. Using a remover, remove the console upper cover (A).

    Other information:

    Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Climate Control Air Filter. Repair procedures

    Replacement 1. Remove the glove box. (Refer to Body - "Glove Box") 2. Remove the filter cover (A) by pressing the knob. 3. Replace the air filter (A) with a new one according to the direction of air filter.

    Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Heater & A/C Control Unit (DATC). Repair procedures

    Self Diagnosis 1. Self-diagnosis process.    • When operating the self-diagnostics, the below fault(self-diagnostics code) will blink at 0.
