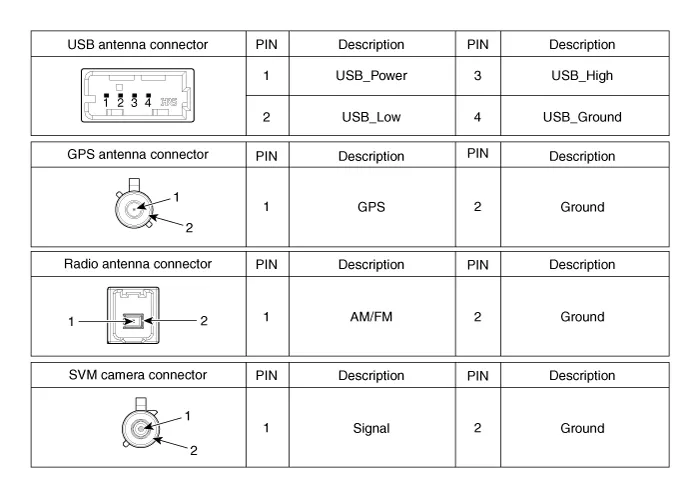

| Components |

|
No |

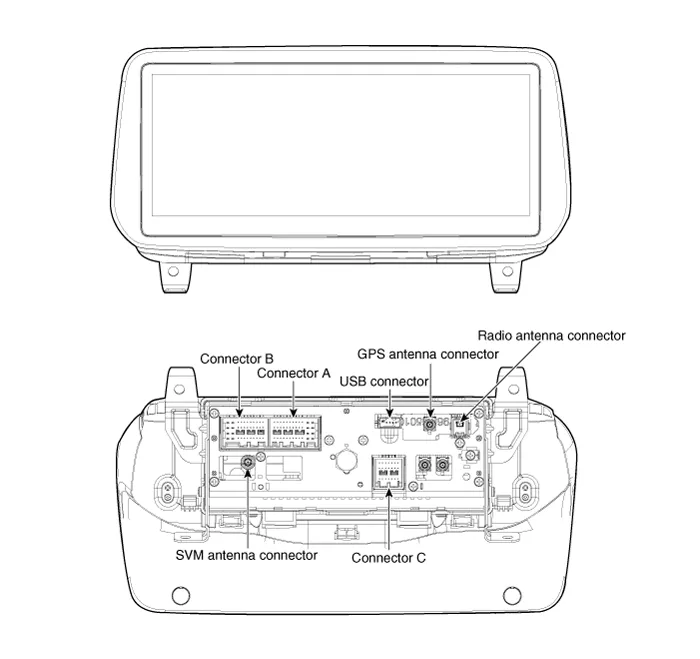

Connector A (ExternalAmplifier) |
Connector A (Internal Amplifier) |
Connector B |
Connector C |
|
1 |
- |
Rear door speaker LH (+) |
- |
- |
|
2 |
- |
Rear door speaker LH (-) |
Mic (+) |
I -CAN (High) |
|
3 |
Navigation voice (+) |
- |
- |
- |
|
4 |
External amplifier SPDIF (+) |
- |
- |
- |
|
5 |
Reset |
Reset |
- |
- |
|
6 |
Camera power (RVM) |
Camera power (RVM) |
Illumination (+) |
- |
|
7 |
Camera video (RVM) |
Camera video (RVM) |
M-CAN (High) |
- |
|
8 |
- |
- |
- |
- |
|
9 |
- |
- |
- |
I -CAN (Low) |
|
10 |
- |
- |
Battery (+) |
- |
|
11 |
DETECT |
DETECT |
Battery (+) |
- |
|
12 |
Steering wheel remote |
Steering wheel remote |
Ground |
- |
|
13 |
- |
Front door speaker LH (+) |
- |
- |
|
14 |
- |
Front door speaker LH (-) |
- |
- |
|
15 |
- |
Front door speaker RH (-) |
Mic (-) |
- |
|
16 |
- |
Front door speaker RH (+) |
- |
MTS |
|
17 |
Navigation voice (-) |
- |
- |
- |
|
18 |
External amplifier SPDIF (-) |
- |
- |
- |
|
19 |
External amplifier SPDIF (Ground) |
- |
Illumination (-) |
- |
|
20 |
Camera power_Ground (RVM) |
Camera power_Ground (RVM) |
M-CAN (Low) |
- |
|
21 |
Camera video ground (RVM) |
Camera video ground (RVM) |
- |
- |
|
22 |
- (SVM type:SVM video ground) |
- (SVM type:SVM video ground) |
ACC |
|
|
23 |
- |
- |
Keyboard power |
|
|
24 |
- |
- |
- |
|
|
25 |
- |
- |
- |
|
|
26 |
Steering wheel remote ground |
Steering wheel remote ground |
- |
|
|
27 |
- |
Rear door speaker RH (-) |
- |
|
|
28 |
- |
Rear door speaker RH (+) |
- |
|
|
29 |
- |
- |
- |
|
|
30 |
- |
- |
- |
|
|
31 |
- |
- |
- |
|
|
32 |
- (SVM type:SVM Detect1) |
- (SVM type:SVM Detect1) |
- |
|
|
33 |
Camera video shield (RVM) |
Camera video shield (RVM) |
IGN 1 |
|
|
34 |
- (SVM type:SVM video shield ) |
- (SVM type:SVM video shield ) |
Keyboard ground |
|
|
35 |
- |
- |
Ground |
|
|
36 |
- |
- |
|
|
|
37 |
- |
- |
||
|
38 |
Vehicle speed |
Vehicle speed |
