Hyundai Santa Fe (TM): Audio / Audio Unit. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Audio / Audio Unit. Components and components location

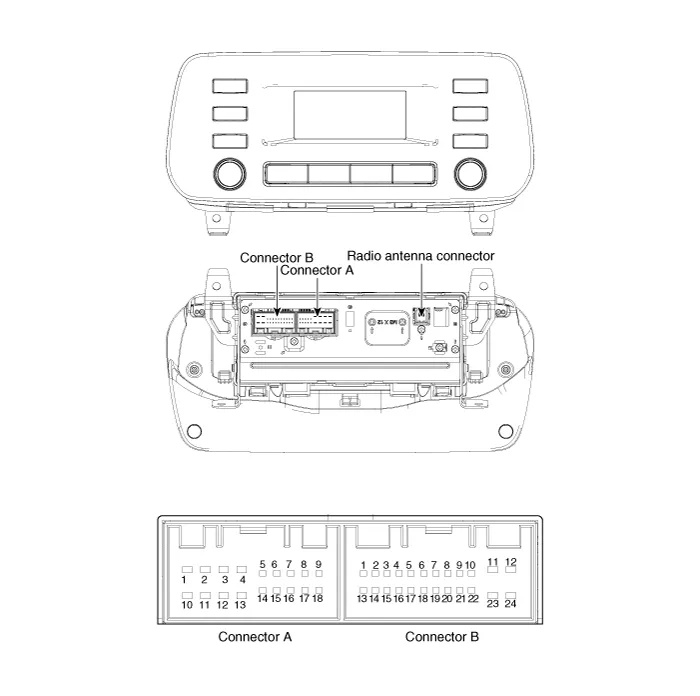

Components

Connector Pin Information
No
Connector A
Connector B
1
 Rear left speaker (+)
 -
2
 Front left speaker (+)
 -
3
 Front right speaker (+)
 -
4
 Rear right speaker (+)
 Steering wheel remote
5
 -
 -
6
 Door open
 USB DATA (+)
7
 IGN1
 USB VOC
8
 Illumination (+)
 -
9
 Detent
 -
10
 Rear left speaker (-)
 Mic (+)
11
 Front left speaker (-)
 ACC
12
 Front right speaker (-)
 B+
13
 Rear right speaker (-)
 -
14
 -
 -
15
 -
 -
16
 -
 Vehicle Speed
17
 Illumination (-)
 Steering wheel remote GND
18
 -
 USB DATA (-)
19
USB GND
20
 -
21
 -
22
 Mic (-)
23
 -
24
 GND

    Specifications Item Specification Model RADIO (MONO Type) RADIO (TFT Type) Power supply DC 14.

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the center air vent duct (A).
