Hyundai Santa Fe (TM): Power Tailgate Module / Anti-Pinch Strip. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Power Tailgate Module / Anti-Pinch Strip. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
3.

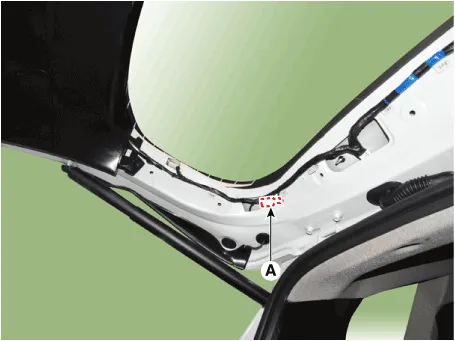

Remove the anti-pinch strip sensor connector (A).
4.

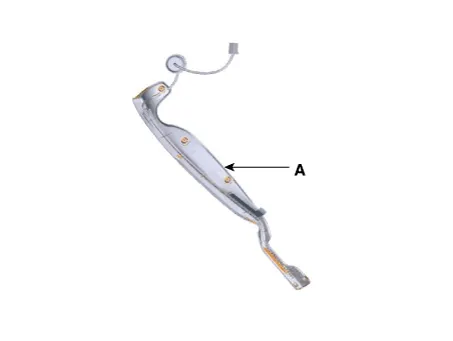

Remove the anti-pinch strip (A) after removing the clips.
Installation
1.
Install the tailgate anti-pinch strip.
2.
Install the tailgate side trim.
3.
Connect the negative (-) battery terminal.
