Hyundai Santa Fe (TM): Immobilizer System / Antenna Coil. Repair procedures
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Immobilizer System / Antenna Coil. Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 3. |

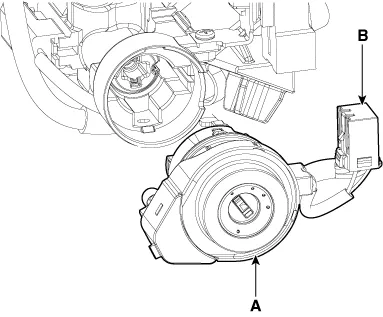

Disconnect the 6P connector (B) of the coil antenna and then remove
the coil antenna (A) after loosening the screw.
|
| Installation |
| 1. |
Install the coil antenna and connect the 6P connector.
|
| 2. |
Install the crash pad lower panel.
|
| 3. |
Connect the negative (-) battery terminal.
|
