Hyundai Santa Fe (TM): Seat Electrical / Air Ventilation Seat. Repair procedures
| Removal |
| 1. |
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
|
| 2. |

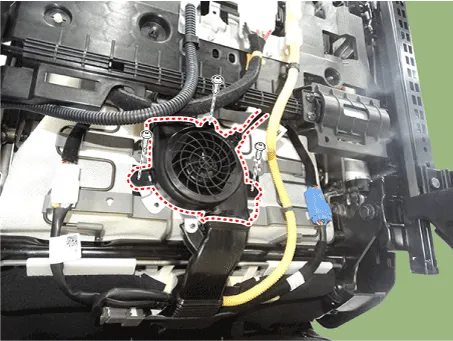

Remove the cushion blower(A) after loosening the screws(3EA) and disconnecting
the connector.
|
| 1. |
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
|
| 2. |

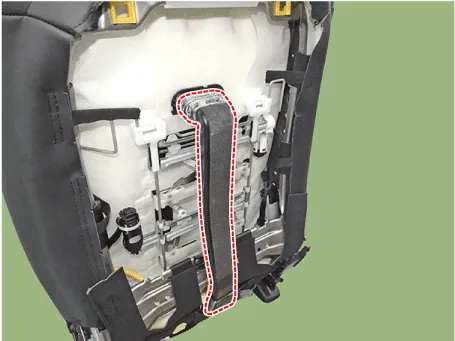

Remove the air duct (A) after loosening the screws and disconnecting
the connector.
|
| 1. |
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
|
| 2. |
Remove the air ventilation unit(A) after loosening the screws(2EA) and
disconnecting the connector.
|
| Installation |
| 1. |
Install the cushion blower.
|
| 2. |
Install the front seat assembly.
|
| 1. |
Install the air duct.
|
| 2. |
Install the front seat assembly.
|
| 1. |
Install the air ventilation unit.
|
| 2. |
Install the front seat assembly.
|
Circuit Diagram No. Connector A Connector B Connector C 1 Vent heater ECU _ IGN1 Driver vent switch LED (Low) Vent / heater power 2 Driver blower power Driver vent switch LED (Mid) Driver heater power 3 Driver blower speed Driver vent switch LED (High) Driver heater ground 4 Driver RPM input Driver NTC (+) Driver / Assist, Vent / Heater ground 5 Driver heater switch - vent / heater power 6 Driver vent switch Illumination (-) - 7 Illumination (+) Driver NTC (-) Assist heater power 8 Driver heater LED (Low) Driver blower ground - 9 Driver heater LED (Mid) Driver vent led (Low) Assist heater ground 10 Driver heater LED (High) Driver vent led (Mid) Driver / Assist, Vent / Heater ground 11 Vent seat unit IGN 2 Driver vent led (High) 12 Assist blower power Assist NTC (+) 13 Assist blower speed FATC PWM 14 Assist blower RPM input - 15 Assist heater switch Assist NTC (-) 16 Assist vent switch Assist blower ground 17 Detent 18 Assist heater LED (Low) 19 Assist heater LED (Mid) 20 Assist heater LED (High)
