Hyundai Santa Fe (TM): Driver Parking Assistance System / ADAS Parking ECU (ADAS_PRK). Components and components location

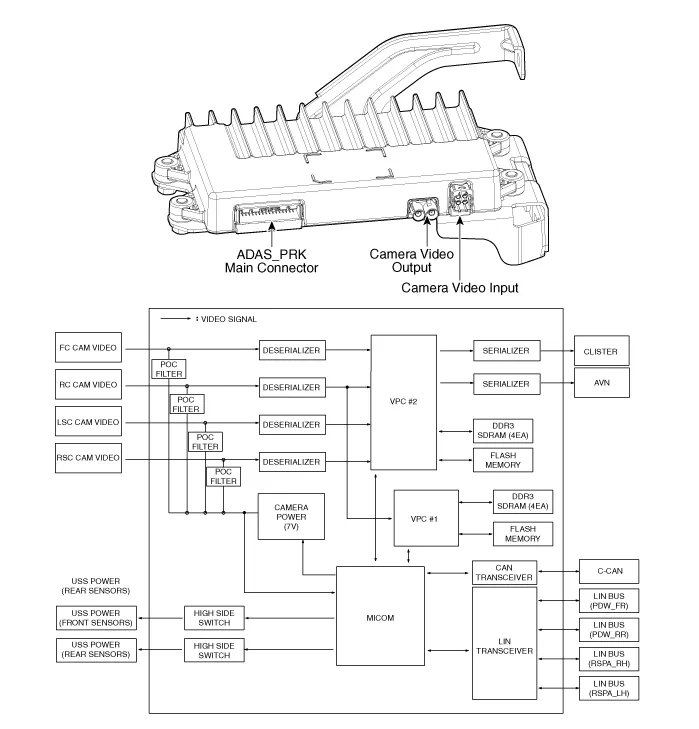

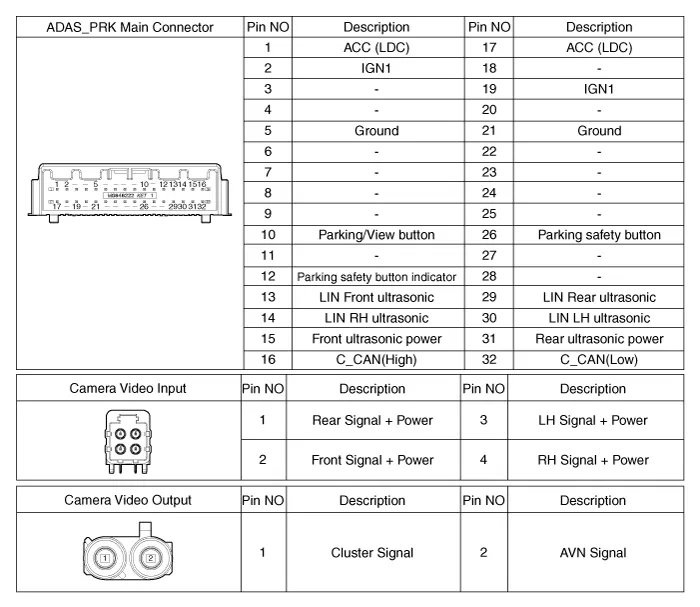

| Components and Components Location |
Troubleshooting Diagnosis with Diagnostic tool 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the carash pad lower panel.
