Hyundai Santa Fe (TM): AC Inverter System / AC Inverter Unit. Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / AC Inverter System / AC Inverter Unit. Components and components location

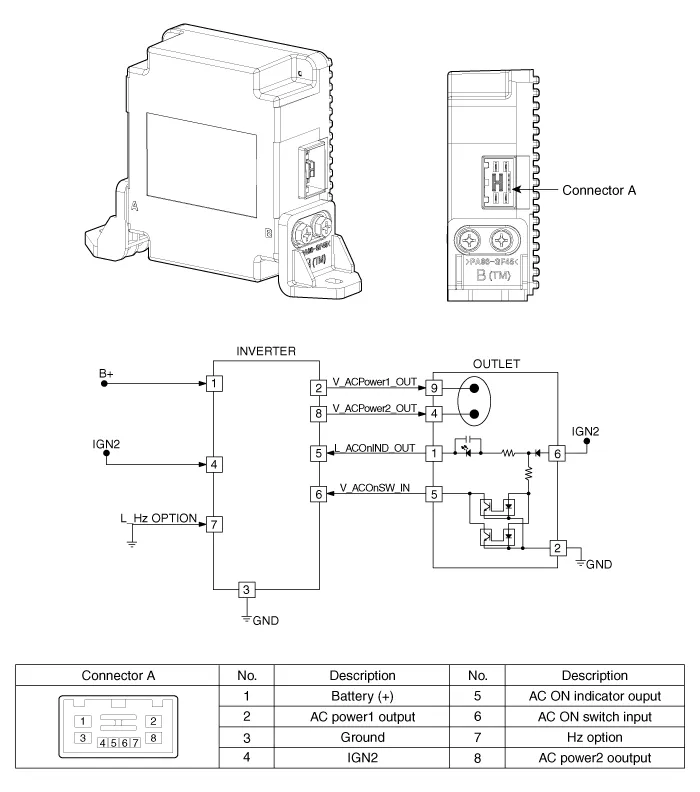

| Components |
Specification Item Specification Rated Voltage DC 12.5V Operating voltage DC 12.
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the right luggage side trim.
