Hyundai Santa Fe (TM): AC Inverter System / AC Inverter Oultet. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / AC Inverter System / AC Inverter Oultet. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear console cover.
(Refer to Body - "Rear Console Cover")
3.

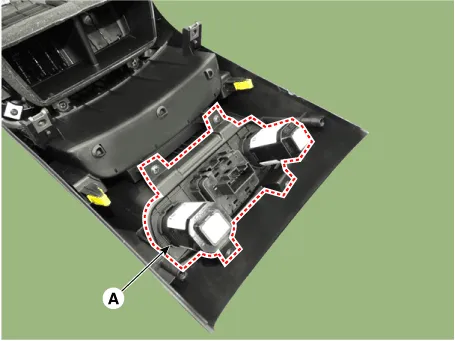

Remove the power outlet cover (A).
4.

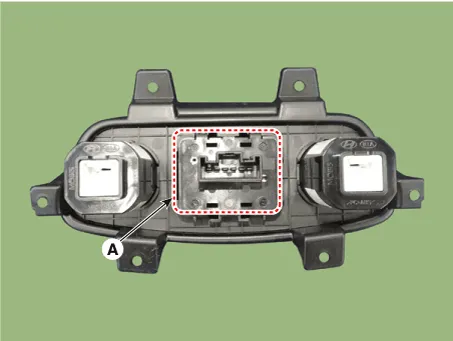

Remove the power outlet switch (A) on the bracket.

Installation
1.
Install the power outlet switch.
2.
Install the power outlet cover.
3.
Connect the negative (-) battery terminal.
