Replacement
1.
Remove the glove box.
(Refer to Body - "Glove Box")
2.

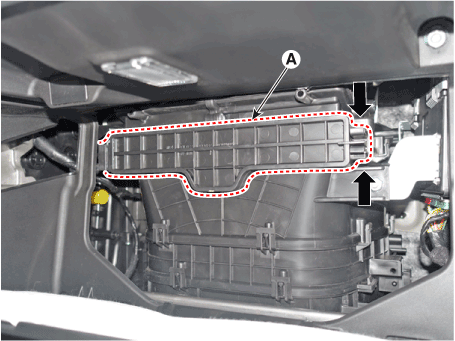

Remove the filter cover (A) by pressing the knob.

3.
Replace the air filter (A) with a new one according to the direction of air filter.


To remove the filter easily, press the right side inward then pull out the filter.
In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.

    Climate Control Air Filter. Description and operation

    Description The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment...

    Intake Actuator. Description and operation

    Description The intake actuator is located at the blower unit. It regulates the intake door by a signal from the control unit. Pressing the intake selection switch will shift between recirculation and fresh air modes...
